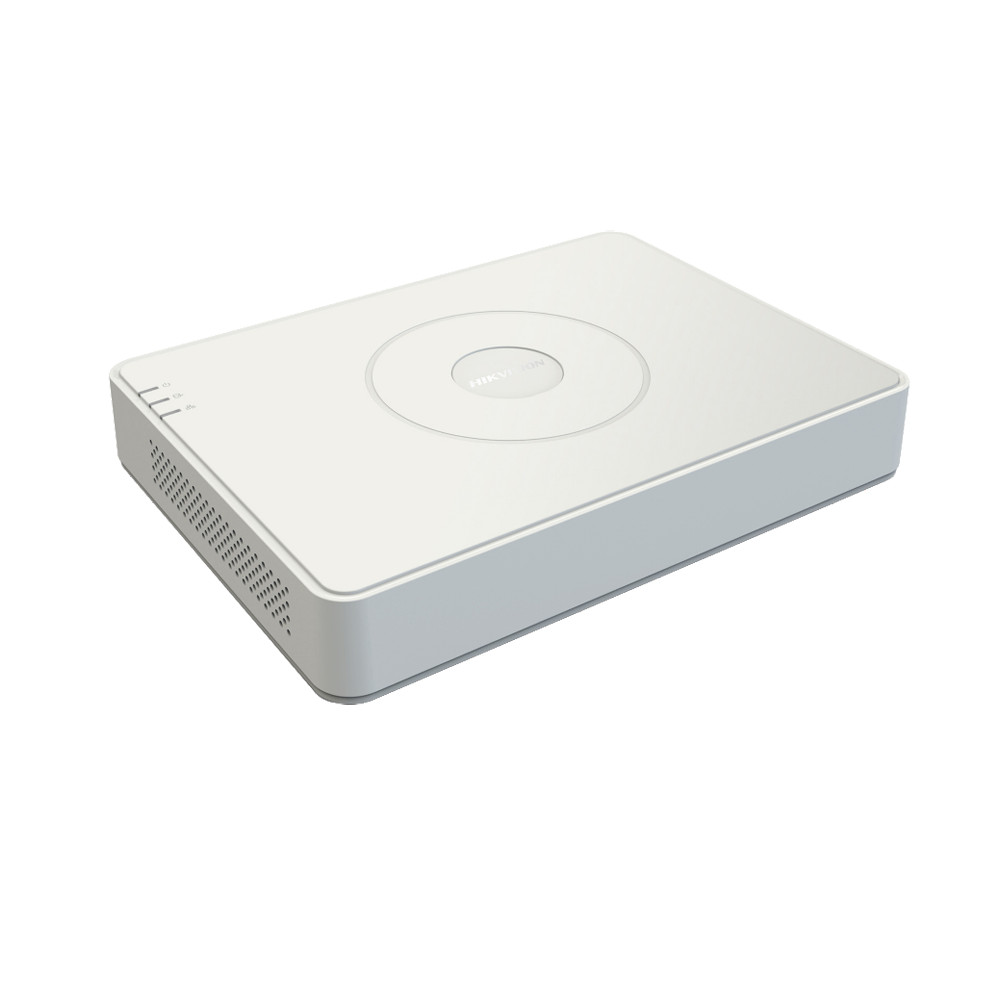

HIKVISION DVR 5N1 Gama Core - 16 CH HDTVI / HDCVI / AHD / CVBS - Up to 24 IP channels - Maximum 3K input resolution - Acusense: Falm Filter - Supports 1 hard disk up to 10TB | Audio
€219.90
(IVA included)
Delivery cost is not included
Description
| Mark | Hikvision |
| Gamma | Core |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 2 Additional IP CH: Up to 18 IP channels (6MPX), replacing all BNC channels IP Mode improved: 8 CH IPS Additional: up to 24 IP channels (4MPX), replacing all BNC channels |
| Available bandwidth | Total: 128 Mbps IP mode input width improved: 96 |
| Video exits | 1 HDMI 4K and 1 VGA, simultaneously; |
| Display resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Audio inputs | 1 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reuse the audio input |
| Bit Rate Audio | 64 kbps |
| Audio compression | G.711U |
| Video Compression | Analog Channels: H.265 Pro+ / h.265 Pro / h.265 / h.264+ / h.264 IP channels: h.265+ / h.265 / h.264+ / h.264 |
| Recording resolution | 4MPX HDTVI / 3MPX / 1080P / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Entry resolution | HDTVI: 3K (20 fps), 5mpx (20 fps), 4 MPX (25 ~ 30 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 60 fps) HDCVI: 5mpx (20 fps), 4mpx, 1080p (25 ~ 30 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) AHD: 5mpx (20 fps), 4mpx, 1080p (25 ~ 30 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) CVBS: PAL/NTSC |
| Main Stream coding | 1080p Uncitable Lite: For Stream4 MPX: 4 MPX Lite/1080p (15 fps), 720p/vga/wd1/4cif/cif (25 fps (p), 30 fps (n)) 1080p Activated Lite: 4 MPX Lite (15 fps), 1080p Lite/720p Lite/VGA/WD1/4cif/CIF (25 fps (p), 30 fps (n)) |
| Extra Stream coding | WD1/4CIF (12 fps), CIF (25 fps (p), 30 fps (n)) |
| Bit Rate Video | 32 kbps at 10 mbps |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Alarms | Does not have |
| Motion detection | Movement detection 2.0 with human classification and vehicle applied to movement detection. Available on all analog channels. * Movement detection and Acusense cannot be activated at the same time on the same device. |
| Intelligent Functions | Acuse Technology based on Deeplearning for Human Classification and Fake Alarm Reduction Vehicles Applied at: Line crossing, area intrusion, input region, exit region, exit region Available in 4 analog video channels. * Movement detection and Acusense cannot be activated at the same time on the same device. |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (memory, hdd, cd-rw, dvr-rw) / network |
| Internal storage | 1 HDD SATA 3.5 "up to 10 tb (not included) |
| Communication | 2 x USB 2.0 (behind) / 1XRJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote access | Web browser, Hik-Connect Smartphone App, PC Software IVMS-4200 and Hik-Central |
| Food | DC 12 V, 1.9 A, ≤ 15 W (without HDD) |
| Operating temperature | -10 ° ~ +55 ° C |
| Dimensions / Weight | 48 (h) mm x 285 (w) mm x 210 (fo) mm / ≤ 1 kg (without hdd) |
| Color | White |
