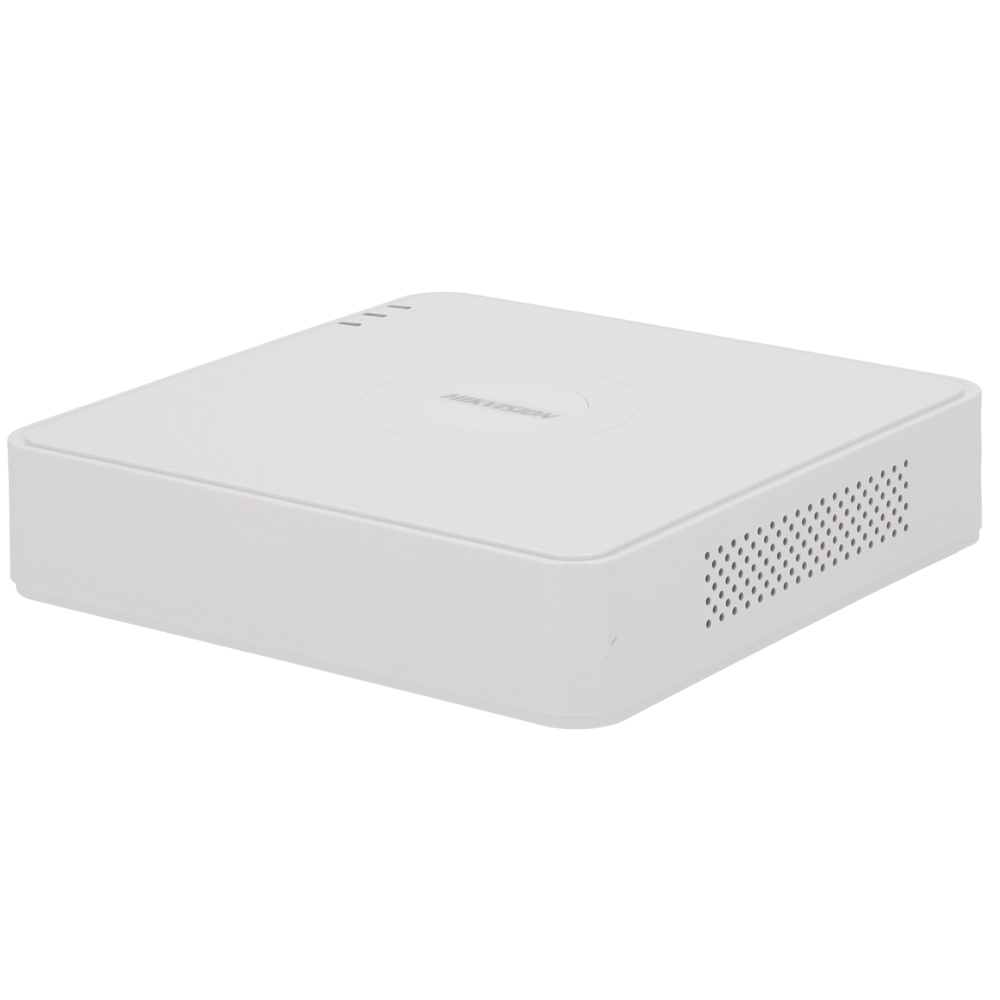

HIKVISION DVR 5N1 VALUE - 8 CH HDTVI / HDCVI / AHD / CVBS - Up to 10 IP channels - Maximum input resolution 1080p Lite - Motion detection 2.0 on all channels - Supports 1 hard disk up to 4 tb | Audio
€72.12
(IVA included)
Delivery cost is not included
Description
| Mark | Hikvision |
| Gamma | Value |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 2 additional IP CH: up to 10 IP channels (5 mpx), replacing all BNC channels |
| Available bandwidth | 72 Mbps |
| Video exits | 1 HDMI Full HD and 1 VGA, simultaneously; |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio inputs | 1 RCA Channel 8 coaxial audio channels |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reuse the audio input |
| Bit Rate Audio | 64 kbps |
| Audio compression | G.711U |
| Video Compression | Analog Channels: H.265 Pro+ / h.265 Pro / h.265 / h.264+ / h.264 IP channels: h.265+ / h.265 / h.264+ / h.264 |
| Recording resolution | 1080p Lite/ 720p/ 720p Lite/ WD1/ 4cif/ VGA/ CIF |
| Entry resolution | HDTVI: 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) HDCVI: 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) AHD: 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) CVBS: PAL/NTSC |
| Main Stream coding | For the 1080p stream: 1080p Lite/720p Lite/WD1/4cif/VGA/CIF (25 fps (p), 30 fps (n)) For the 720p stream: 720p/wd1/4cif/vga/cif (25 fps (p), 30 fps (n)) For Stream SD: WD1/4CIF/VGA/CIF (25 fps (p), 30 fps (n)) |
| Extra Stream coding | CIF/QVGA (25 fps (p), 30 fps (n)) |
| Bit Rate Video | 32 kbps at 4 Mbps |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Alarms | Does not have |
| Motion detection | Movement detection 2.0 with human classification and vehicle applied to movement detection. Available on all analog channels. |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (memory, hdd, cd-rw, dvr-rw) / network |
| Internal storage | 1 HDD SATA 3.5 "up to 4 tb (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x rj45 x [%var%] (Ethernet) |
| Remote Connections | 64 |
| Remote access | Web browser, Hik-Connect Smartphone App, PC Software IVMS-4200 and Hik-Central |
| Food | DC 12 V, 1.5 A, ≤ 17 W (without HDD) |
| Operating temperature | -10 ° ~ +55 ° C |
| Dimensions / Weight | 45 (h) mm x 200 (W) mm x 200 (FO) mm / ≤ 1 kg (without HDD) |
| Color | White |
