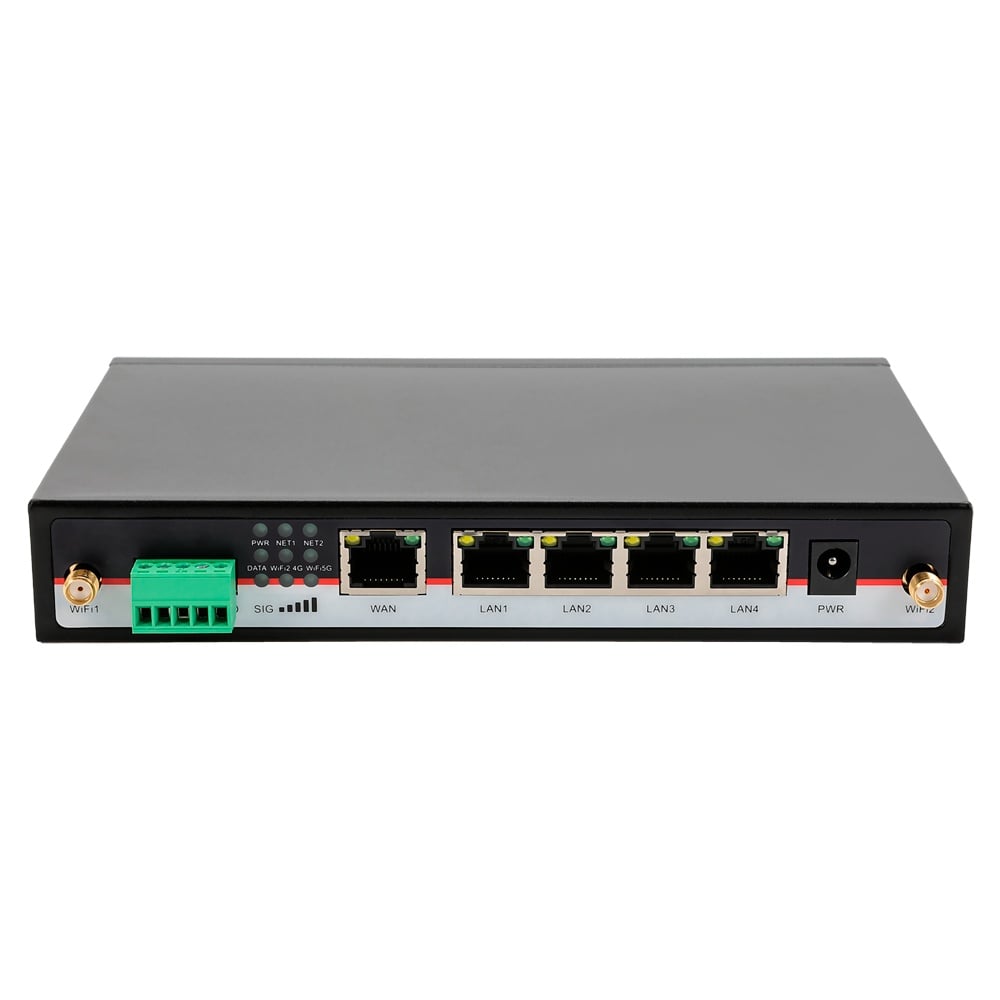

Hongdian Router 4G Industrial - 2 x 4g Modules LTE CAT 6 - Dual SIM DUAL MODEM - Doors RS232/RS485 - Wi -Fi 802.11b/g/N/AC 2.4GHZ -5GHZ - 5 PUGE SHORTS Ethernet RJ45 Gigabit
€376.65
(IVA included)
Description
| Mark | Hongdian |
| Device | Router 4g Industrial |
| YES | 2 SIM 4G / 3G 2FF (not included) |
| Dual yes | Automatic Failover in case of weak signal / data limit / roaming / without network |
| Standard doors | Transparent, modbus rti Definition of doors: RX, TX, GND (RS-232), A+, B-, GND (RS-485) 5-Pin 3.5 mm connector female connector RS-232 transmission rate (300-115200bps), RS-485 (300-115200bps) |
| Wi-fi | Wi-Fi 5 802.11ac Dual Band 2.4Ghz+ 5GHz 2x2 [%var%] |
| LTE | 2 x 4g lte Cat 6 modules |
| Frequencies 5g and LTE | 4g (LTE-FDD): B1/B3/B5/B7/B8/B20 4g (LTE-TDD): B38/B40/B41 3G (WCDMA): B1/B5/B8 2g: B3/B8 |
| Ethernet | 5 Ethernet ports RJ45 10/00/1000mbps (1 WAN + 4 LAN) |
| Antenna connectors | WiFi and LTE (antennas included) |
| CPU | MIPS1004KC 880 MHz |
| Ram | 256MB DDR3 |
| Flash | 32MB |
| Network protocols | PPP, PPPOE, TCP, UDP, DHCP, ICMP, Nat, http, https, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS, APN, VPDN, VLAN, Qos, Static Routing, Policy Rout, RIP, OSPF and BGP, FAILOVER. |
| VPN protocols | PPTP/L2TP/GRE/IPSEC/OPENVPN/DMVPN/WIREGUARD |
| Monitoring and Management | Http, telnet, ssh, sms, snmp v1/v2/v3, snmp trap |
| Security | Nat, Pat, DMZ, Port Forword IP/Domain/Mac Filter, Access Control List, DDOS Prevention, Anti Port Scanning |
| Food | DC connector 5 industrial pins 9 ~ 36V power supply included |
| Electricity consumption | Inactive: 350MA@12VDC Data connection: 900MA@12VDC |
| Material | Metal |
| Degree of protection | IP30 |
| Temp. operation | -30º C ~ +75º C |
| Moisture | ≤ 95%(in the condenser) |
| Installation | Wall or table |
| Dimensions | 28.5 (AL) X 177.8 (AN) × 105.22 (FO) MM |
| Weight | 550 g |
| Region | Europe, Middle East, Africa, Korea, Thailand, India, Malaysia, India, Malaysia |
