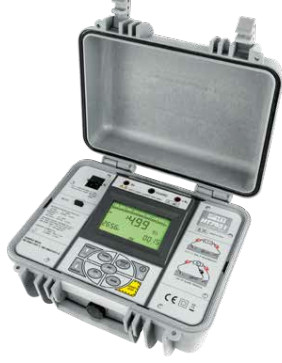

HT7051 - HV007051 5KV Programmable Digital Isolation Tester
€3,985.20
(IVA included)
€3,240.00
(Without IVA)
Description
Professional isolation meter
›DC 100V test voltage measuring field ÷ 5KV
›Insulation resistance measurement field
0.01mΩ ÷ 9.99tΩ
›Test with programmable ramp with steps
25VDC
›Programmable test timer 5s ÷ 100min
›Definition of the measurement limit value
›Measurement of the polarization index (p.i.)
›Measurement of dielectric absorption ratio (D.A.R.)
›Measurement of the dielectric discharge ratio (D.D.)
›Measurement of discharge capacity
›Automatic discharge of the object under test
›DC/AC voltage measurement up to 600V
›RS232/Ótica/USB interface for transfer
Data for PC
