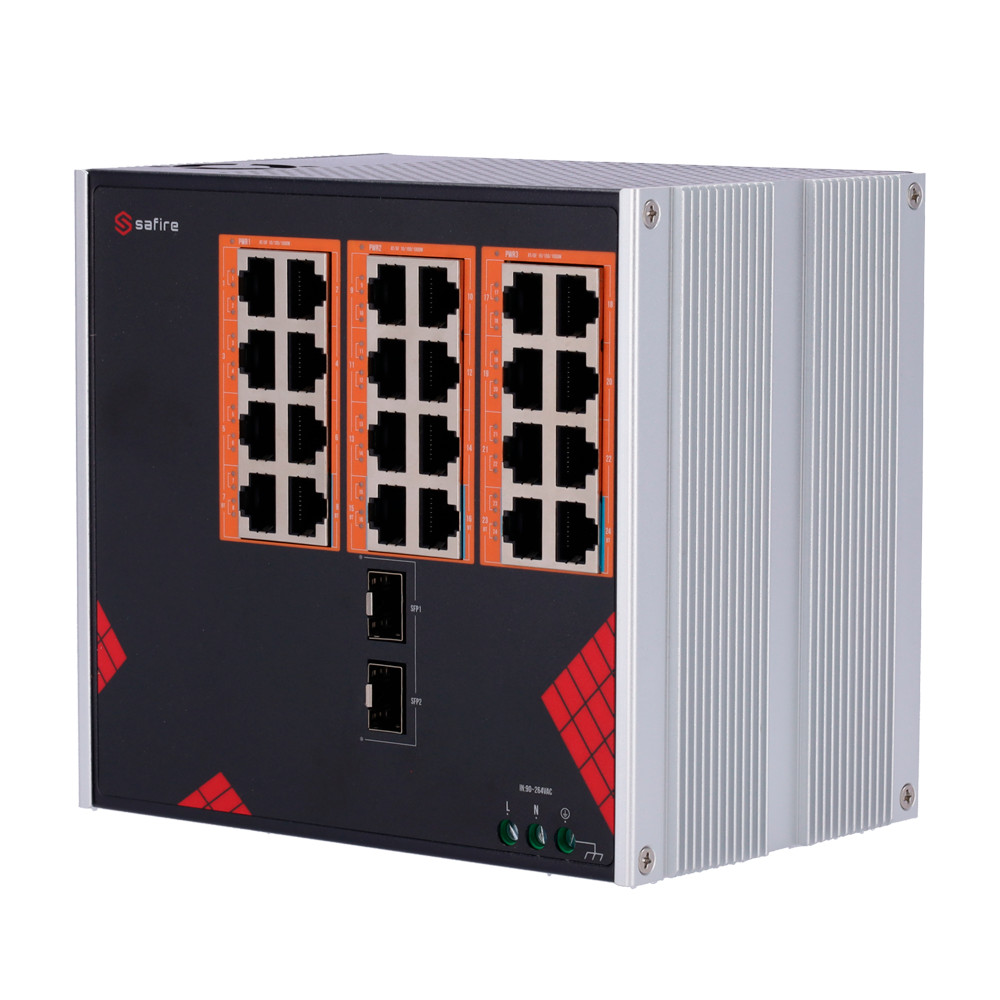

Industrial AC Food Safire Switch 90 ~ 264V - 24 Gigabit Doors + 2 SFPs Gigabit - 18 POE + 30W Ports + 6 Hi -POE 60W ports - Poe Watchdog - Up to 390W Poe Total - Din Installation Din Installation
€182.44
(IVA included)
€148.32
(Without IVA)
Delivery cost is not included
Description
| Interfaces | 24 RJ45 + 2 SFP ports |
| Port speed RJ45 | 18x RJ45 Gigabit Poe 10/100/1000mbps 2 gigabit sfp 10/100/1000mbps |
| Poe Characteristics | Up to 390W in total for all doors Doors 1 ~ 6/9 ~ 14/17 ~ 22 poe+ up to 30W 802.3AF/AT Doors 7 ~ 8/15 ~ 16/23 ~ 24 Hi-POE UP TO 60W 802.3AF/AT/BT |
| Transmission distance | 130 meters |
| Bandwidth | 52gbps |
| Transmission rate | 38.68MBPS |
| Mac table | 8k |
| Latency | 10 to 100Mbps <16μs (using 64 bytes of the package size) |
| Ai Poe | POE WATCHDOG 1 ~ 24 - Automatic restoration of the power door of a Poe door when a possible failure is detected. |
| Food | AC 90 ~ 264V |
| Protection | 6kV against energy pits 8KV Protection ESD IP40 |
| Operating temperature | -40 ° C - 70 ° C |
| Dimensions | 145 x 110 x 160mm |
| Weight | 1.86 kg |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
SF-SWI2624HIPOE-GF-AC-390-DIN
EAN
8435325476452
