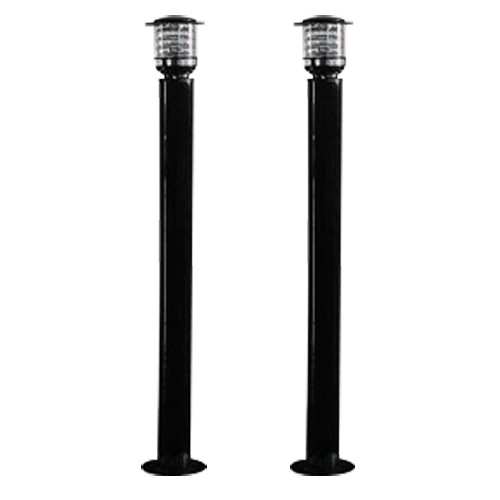

Infrared Barrier Detector - Cabbada | 10 Light beam - MAX range. Detection 30 m - Simple installation with led and horn - Unique direction for each tower - relay exit NC/no | Food 12 ~ 18VDC
€243.00
(IVA included)
€197.56
(Without IVA)
Delivery cost is not included
Description
| Detection range | 30 m exterior |
| Number of beams of light | 10 |
| Detection method | Interruption of 2 continuous beams at the same time |
| Communication | One direction for each tower: emitter or receiver |
| Sensitivity | Adjustable between L, M, H |
| Frequency channels | 2 different channels through DIP switch |
| Alarm exits | 1 Relay No/NC Max .. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180 ° (± 90 °) |
| Adjustment method | Through led and horn |
| Led light | E27 230VAC (included) |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Food | 12 ~ 18 vdc, 90 ma max .. |
| Dimensions | Height: 185 cm / diameter: 13 cm |
