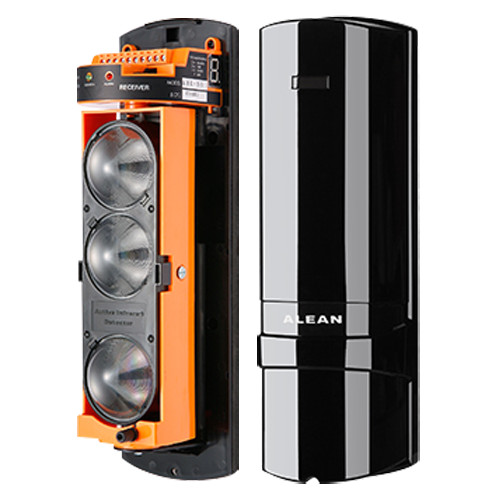

Infrared Barrier Detector - Cabbada | 3 Light beam - MAX range. Detection 150/450 m - High configuration capacity - Tamper | Relay Exit | LED Display - Food 12 ~ 24VDC/VAC
€58.29
/Un
(IVA included)
€47.39
/Un
(Without IVA)
Delivery cost is not included
Description
| Detection range | 450m interior / 180m outdoor |
| Number of beams of light | 3 |
| Detection method | Interruption of 3 bundles at the same time |
| Interruption time | 50ms, 100ms, 300ms, 700ms (selectable) |
| Frequency channels | 4 different channels through DIP switch |
| Alarm exits | 1 Relay No/NC Max .. 30VDC/VAC, 1a), Tamper NC |
| Adjustment angle | Horizontal 180 ° (± 90 °), vertical 20 ° (± 10 °) |
| Adjustment method | Through LCD display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Food | 12 ~ 24 VDC/VAC, 200 ma max .. |
| Dimensions | 291 (AL) X 92 (LG) X 90 (FD) MM |
