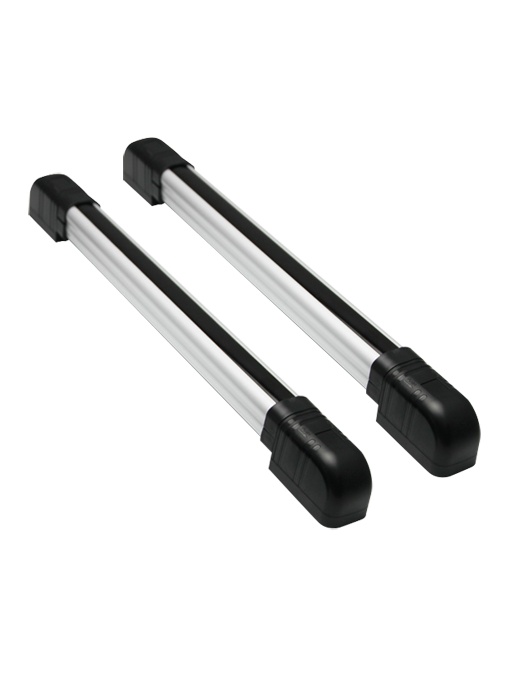

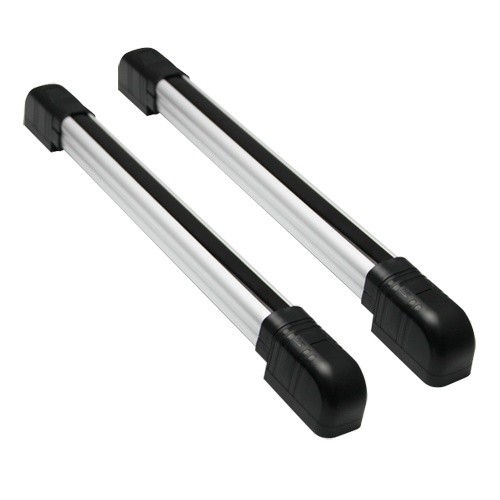

Infrared Barrier Detector - Cabbada | 8 Light beam - MAX range. Detection 30 m - Simple installation with led and horn - NC/NO relay output 9 ~ 30VDC
€48.48
(IVA included)
€39.41
(Without IVA)
Delivery cost is not included
Description
| Detection range | 30m outer |
| Number of beams of light | 8 |
| Detection method | Interruption of 2 continuous beams at the same time |
| Sensitivity | Adjustable between l, m h |
| Frequency channels | 2 different channels through DIP switch |
| Alarm exits | 1 Relay No/NC Max .. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180 ° (± 90 °) |
| Adjustment method | Through led and horn |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Food | 9 ~ 30 vdc, 50 ~ 120 mA |
| Dimensions | 140 (AL) X 4 (LG) X 7 (PF) CM |
