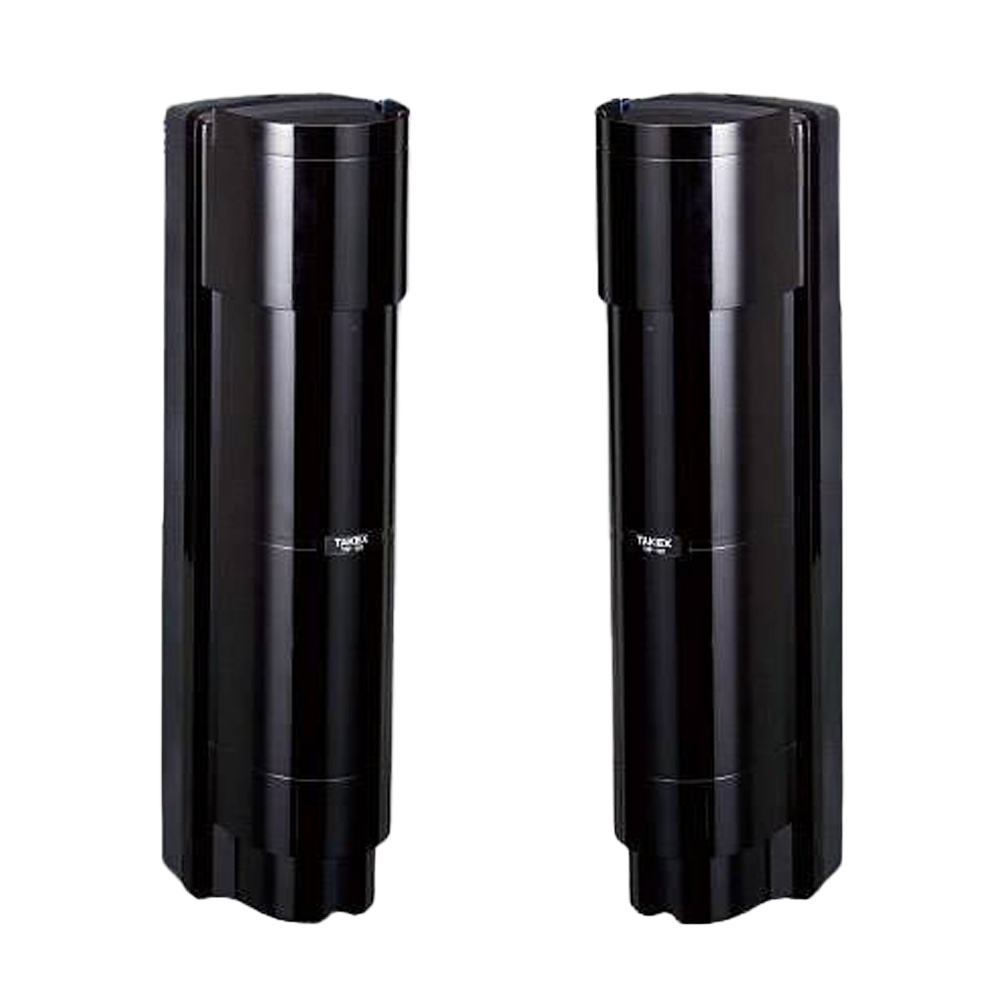

Infrared Barrier Detector - Compatible with Radio Transmitter - Cabbad | 4 beams of light | And and or - range max. Detection 100 m (adjustable) - Double Tamper | Alarm output - Battery feed
€811.38
(IVA included)
€659.66
(Without IVA)
Description
| Use | Infrared barrier detector |
| Detection range | 100 m exterior |
| Number of beams of light | 4 |
| Detection method | Interruption of 4 beams at the same time or only 2 (up or down) |
| Interruption time | 50ms, 100ms, 250 ms, 500 ms (selectable through a DIP Switch) |
| Frequency channels | 4 different channels through DIP switch |
| Exits | Alarm output on/nf, NF sabotage output, weak battery output NF |
| Compatibility | Compatible with radio broadcasters |
| Adjustment angle | Horizontal 180 ° (± 90 °), vertical 20 ° (± 10 °) |
| Operating temperature | -25ºC ~ +60ºC |
| Food | RECOMMENDED LS33600 BATTERIES |
| Power output to the transmitter | 3.0 V DC |
| Dimensions | 447 (AL) X 114 (AN) X 166 (FO) MM |
| Transmitter dimensions | 200 (AL) X 67 (AN) X 33 (FO) MM |
| Installation | Outer or inner |
