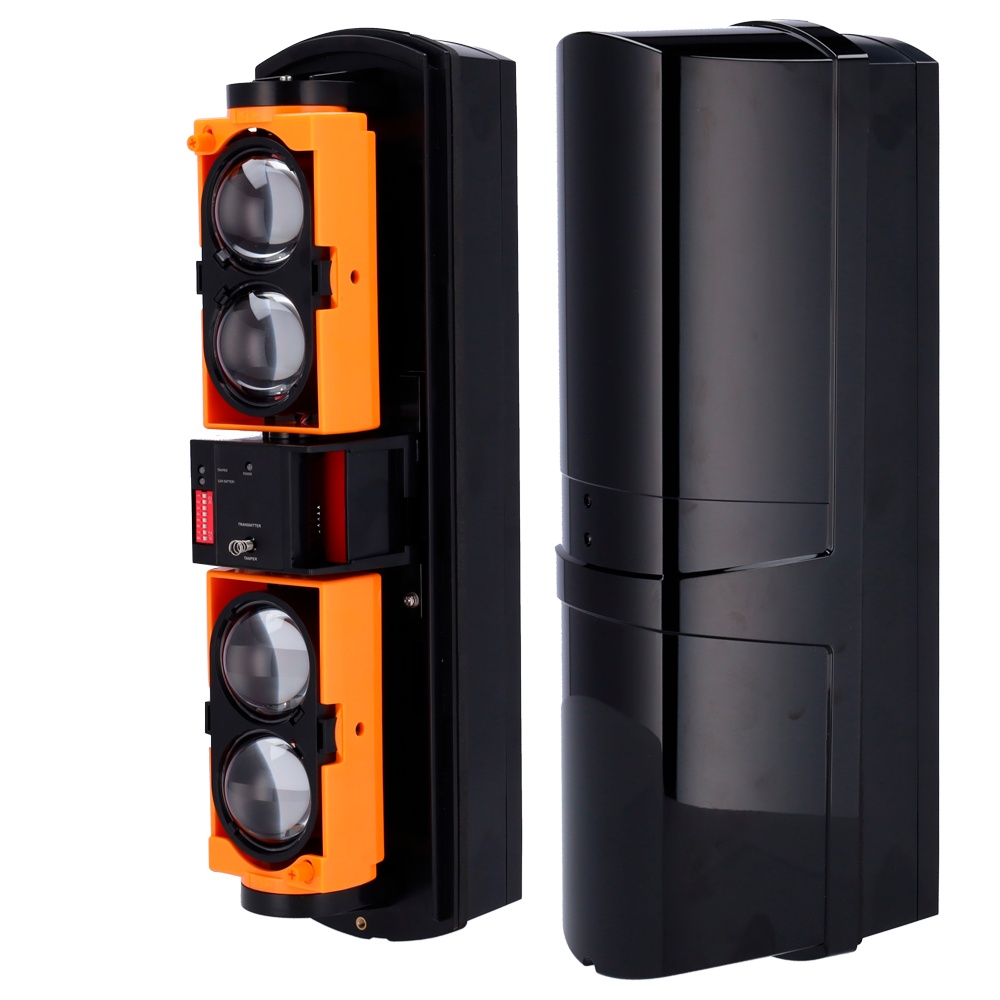

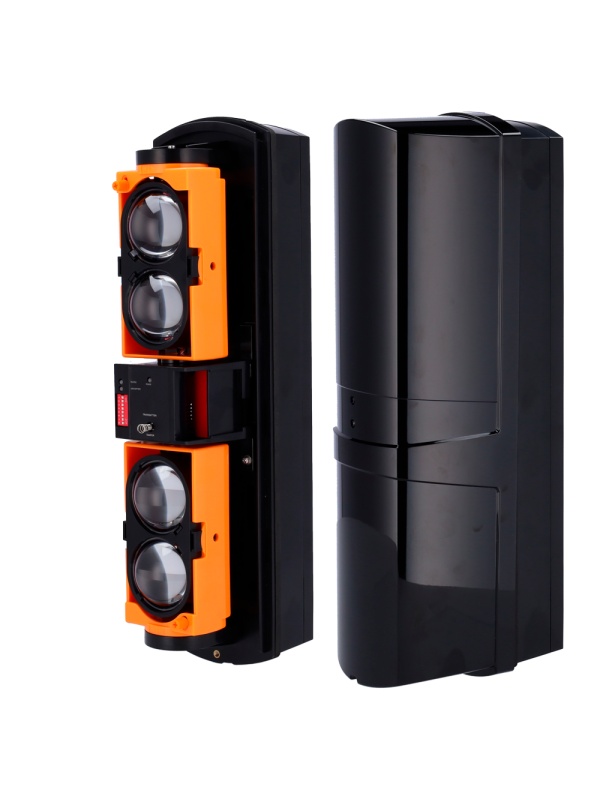

Infrared Barrier Detector - Compatible with the transmitter or doorprotect Ajax - Cabbad | 4 beams of light | And and or - range max. Detection 100/300 m - Double Tamper | Alarm output - Battery feed
€223.26
(IVA included)
€181.51
(Without IVA)
Delivery cost is not included
Description
| Use | Infrared barrier detector |
| Detection range | 300m interior / 100m outdoor |
| Number of beams of light | 4 |
| Detection method | Interruption of 4 beams at the same time or only 2 (up or down) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (selectable) |
| Frequency channels | 4 different channels through DIP switch |
| Exits | Alarm output on/nf, NF sabotage output, weak battery output NF |
| Compatibility | Compatible with the AJAX transmitter module or with the external contact ajax doorprotect/doorprotect plus |
| Adjustment angle | Horizontal 180 ° (± 90 °), vertical 20 ° (± 10 °) |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Food | Er34615h batteries, includes batteries 2 (one for each barrier) |
| Autonomy | 3 years with a battery and 6 years with two batteries each barrier |
| Dimensions | 402 (AL) X 110 (AN) X 166 (FO) MM |
| Installation | Outer or interior, wall assembly or pole |
