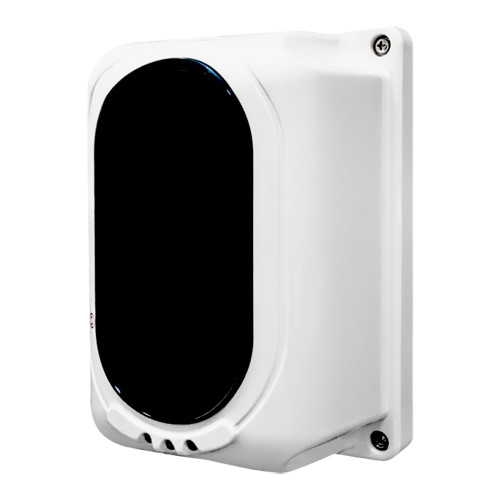

Infrared Fire Barrier - Range up to 100 meters - Laser display and sharpener for easy installation - 14 meter opening (7 on each side) - Adjustable Sensitivity - EN54-12 Certificate: 2015
€204.12
(IVA included)
€165.95
(Without IVA)
Delivery cost is not included
Description
| Certification | LPCB / CE-CPR EN54-12: 2015 BS 5839 Part1: 2017 |
| Coverage distance | Mode 1: 8 - 20 m (Required 1 Reflector Panel) Mode 2: 20 - 40 m (Required 1 Reflector Panel) Mode 3: 40 - 70 m (necessary 4 reflective panels) Mode 4: 70 - 100 m (necessary 4 reflective panels) |
| Sensitivity | Level 1: 2.6DB (high sensitivity) Level 2: 3.8DB (average sensitivity) Level 3: 5.8DB (low sensitivity) |
| Settings | Via dip switch |
| Alignment guide | Laser pointer |
| Nominations | Via display for configuration and led for failures (red: fire / yellow: failure / green: aligned) |
| Reboot time | Less than 2 seconds without food |
| Relay | 2 relays (fire and failure) No/nc, 30VDC/2nd max. |
| Food | 20-28 VDC |
| Consumption | In wait: 23ma Alarm: 33MA |
| Dimensions | L: 190.87 x W: 126.87 x h: 91.96 mm |
| Weight | 440g |
| Material | ABS PLASTIC |
| Degree of protection | IP30 |
| Temperature interval | -10 ~ 55ºC |
| Humidity | 0 ~ 95% Relative humidity, without condensation |
