Description

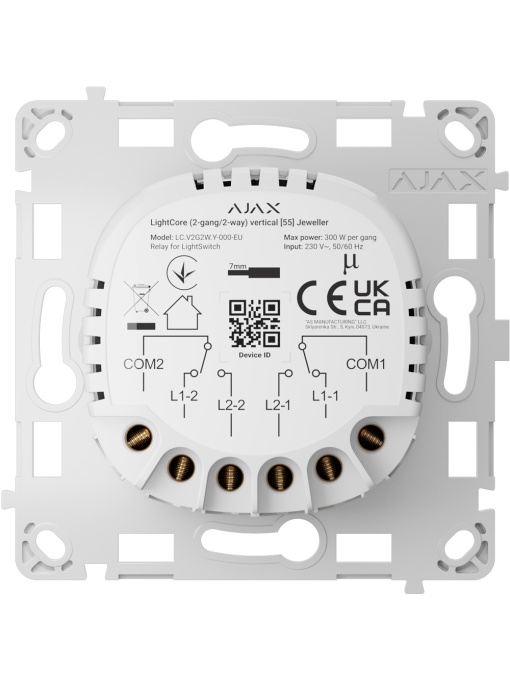

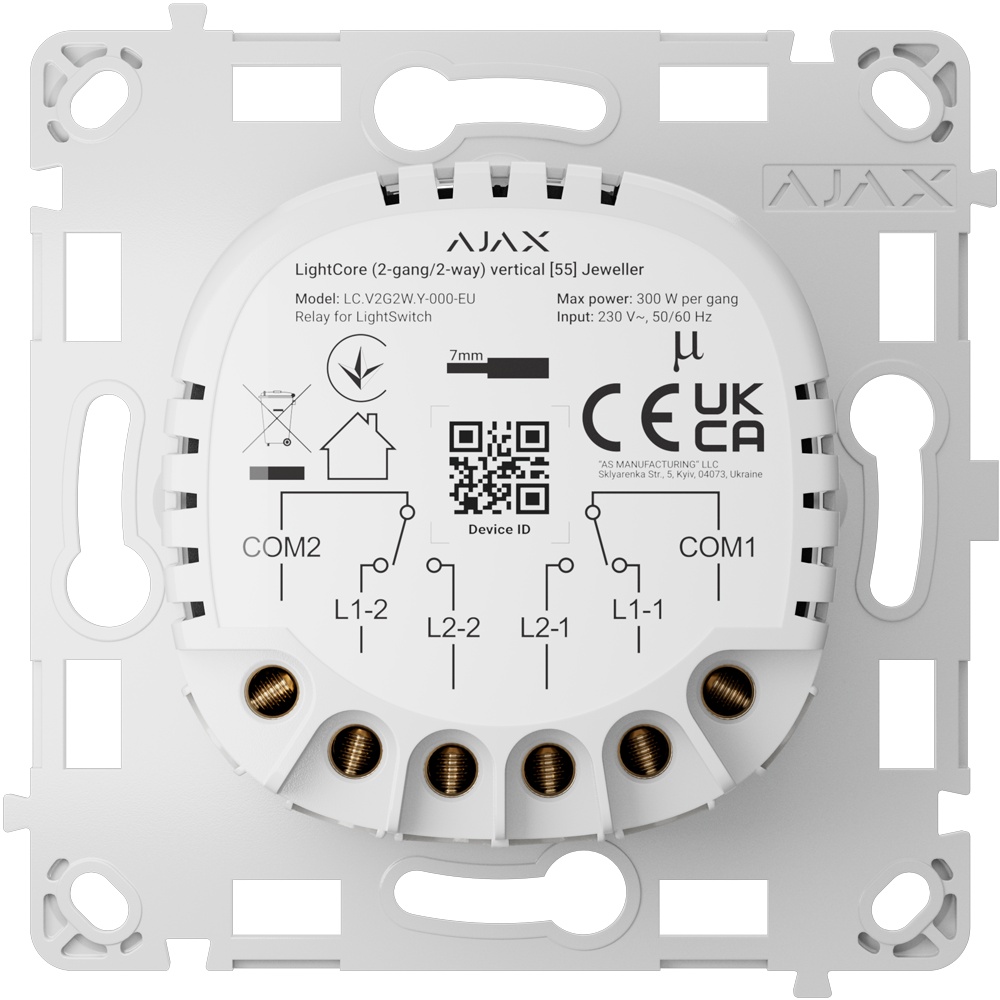

| Mark | AJAX - Lightswitch Lightcore Vertical (2 Gang/2 Way) |
| Function | Intelligent double light switch relay, vertically switched |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHZ Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 MW |
| Switched device power | from 5W to 600 W (up to 300W per segment) |
| Low consumption devices (<5W)) | Install the condenser kit |
| Current and Temperature Protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, Rex, Rex 2 and Hub Hybrid |
| Use | Interior |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 76.3 (AL) x 72.3 (LG) x 29.2 (FD) mm |
| Weight | 48.34 g |
| Terminals | - 2 terminal to the power cord, one for each lighting or load device - 4 terminals for connecting lighting devices or loads, 2 by button (neutral wireless) |
