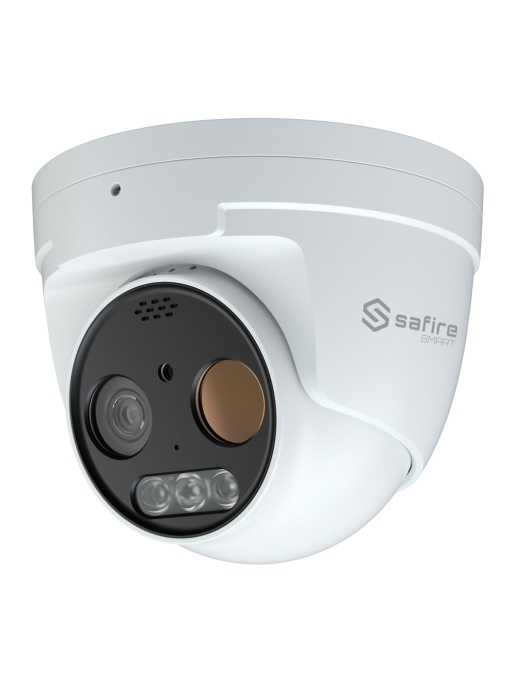

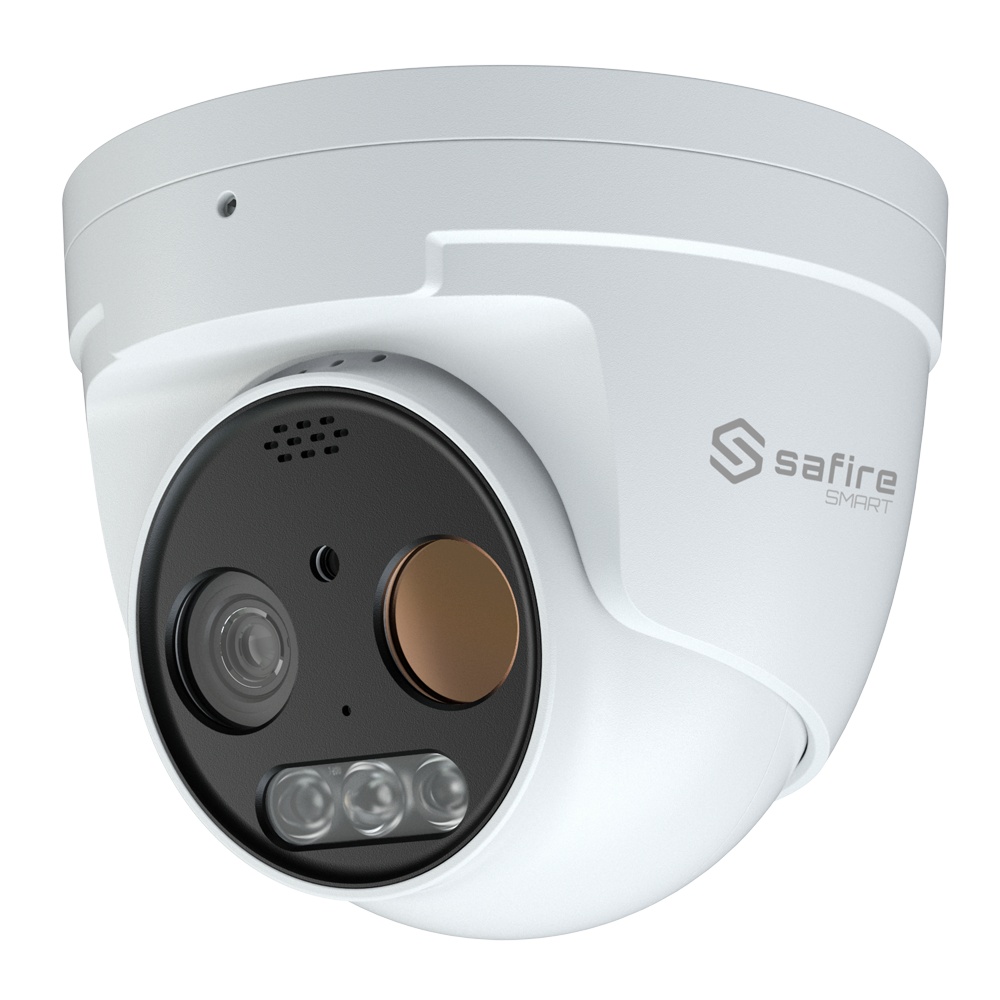

Intelligent Thermal Chamber Double Tower Safire IP - Thermal Sensor 256x192 Vox | 7 mm lens - optical sensor 1/2.7 ”5 mpx | 8 mm lens - thermal sensitivity ≤ 50mk - AI based on human and vehicle classification - time measurement rate -20 ~ 150ºC
€666.75
(IVA included)
€542.07
(Without IVA)
Description
| Mark | Safire Smart |
| Gamma | Thermal |
| Thermal sensor | Vanadium oxide |
| Thermal sensor resolution | 256x192 |
| Optical sensor | 1/2.7 ”Progressive scan cmos |
| Optical Sensor Resolution | 5 megapixel (2592x1944) |
| Main Stream Rate | Thermal: 25 FPS (256x192, the resulting output image is 720p) Optical: 25 FPS (5MPX, 4MPX, 2K, 3MPX, 1080P, 720p) |
| Extra stream rate | Thermal: 25 FPS (256x192, the resulting output image is 720p) Optical: 25 FPS (720p, D1, CIF) |
| Third stream | Thermal: 25 FPS (256x192, the resulting output image is 720p) Optical: 25 FPS (D1, CIF, 480x240) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 7 mm (Term) / 8 mm (opt) |
| Dori (thermal) | Person: 292 m (d), 73 m (r), 36 m (i) Vehicle: 894 m (d), 224 m (r), 112m (i) |
| Vision angle | Thermal: 24.8 ° (h), 18.7 ° (v) Optic: 34 ° (h), 27.5 ° (v) |
| Thermal sensitivity | ≤ 50mk (0.05 ° C) |
| Thermal measurement rate | -20 ~ 150 ºC / ± 8 ° C |
| Spectral strip | 8 ~ 14 μm |
| Pitch detector | 12 μm |
| Basic functions | Movement detection, microSD error, full microSD, IP conflict, cable connection status |
| Rules for Temperature | Up to 10 rules (10 points, 2 areas and 2 fire) |
| Temperature alarm | High temperature, low temperature |
| Fire detection | Dynamic detection detection with detection up to 10 points |
| Intelligent Functions | Thermal: Advanced Artificial Intelligence: Classification of People and Vehicles in: Area Intrusion and Line Passage Optical: Advanced Artificial Intelligence: Classification of People, Vehicles and Non -Motorized Vehicles in: Area Intrusion and Line Passage Face detection and capture Counting of people, vehicles and non -motorized vehicles Video exceptions (scene change, video loss, ...) |
| Audio | Empolded microphone, 1 input / 1 line level 600 output [%var%] OHM |
| Audio compression | G.711 A/U |
| Alarms | 1 inputs / 1 Relay |
| Dissuasive alarm | Sirene and Flash integrated in the Chamber |
| Internal storage | MicroSD Card Skill up to 256 GB |
| Network interface | Ethernet 10/100m baset |
| Remote access | Safire Smart Center Web Browser, NVR and PC software |
| Interoperability | Onvif |
| Food | DC 12 V, 0.7 A, 9 W max. Poe IEEE802.3AF |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | IP66 Waterproof |
| Dimensions | 111.5 (Ø) x 99.6 (height) mm |
| Weight | 680 g |
