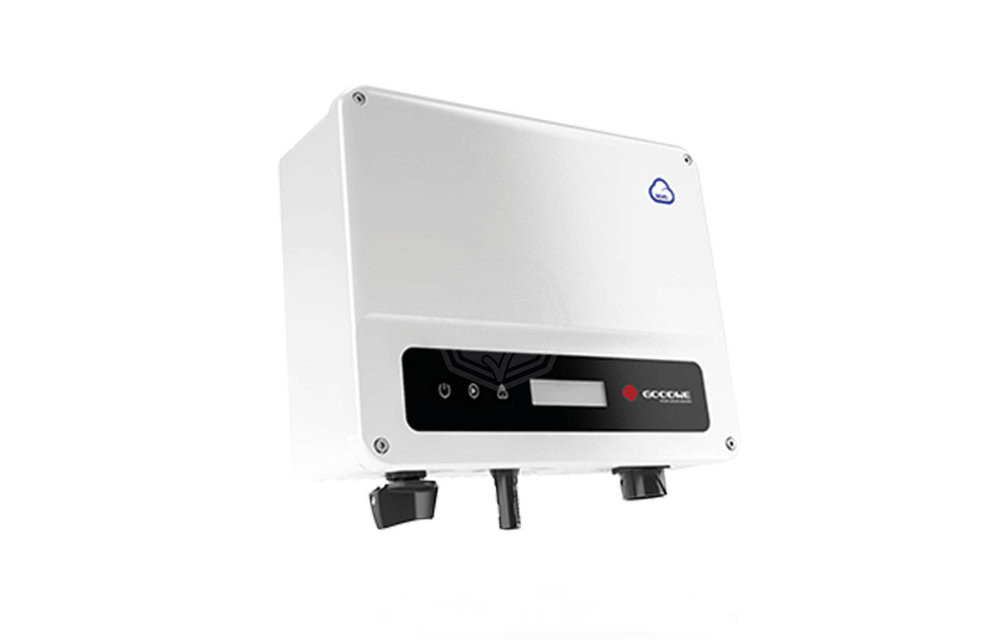

Inverter Connection to the 3000W Monophasic GoodWe GW3000-XS 1-Camppt

String FV Input Data

- Model: GW3000-XS

- Maximum input power CD (W): 3900

- Maximum input voltage CD (V): 500

- MPPT voltage range (V): 50 ~ 450

- Initial voltage (V): 50

- Nominal DC input voltage (V): 360

- Maximum current input (a): 12.5

- Maximum short circuit current (a): 15.6

- MPPT Number: 1

- Number of input flows by MPPT: 1

AC output data

- Nominal Power of Salida (W): 3000

- Apparent maximum potential of salida (VA): 3300

- Nominal Salida Tension (V): 220/230

- Nomile Freculation of Salida (Hz): 50/60

- Maximum Spelling Corrected: 14.3

- Salida Power Factor: ~ 1 (Adjustable 0.8 Leading - 0.8 Lagging)

- Thdi of salida (nominal salid): <3%

Efficiency

- Maximum efficiency: 97.6%

- Euroefficiency: 97.2%

Integrated Protections

- Anti-Isck Protection

- Protection of reverse input polarity

- Isolation resistance protection

- Residual current monitoring

- Outgoing overcurrent protection

- Protection against short circuit

- Protection against Output Overvoltage

General data

- Operational temperature range (ºC): -25 ~ 60

- Relative humidity: 0 ~ 100%

- Operational Altitude (m): <4000

- Refrigeration: Natural Convection

- User Interface: LCD and LED

- Communication: WiFi or LAN

- Weight (kg): 5.8

- Dimensions (width x height x length mm): 295 x 230 x 113

- Degree of protection: IP65

- Night self -consumption (W): <1

- Topology: No Transformer
