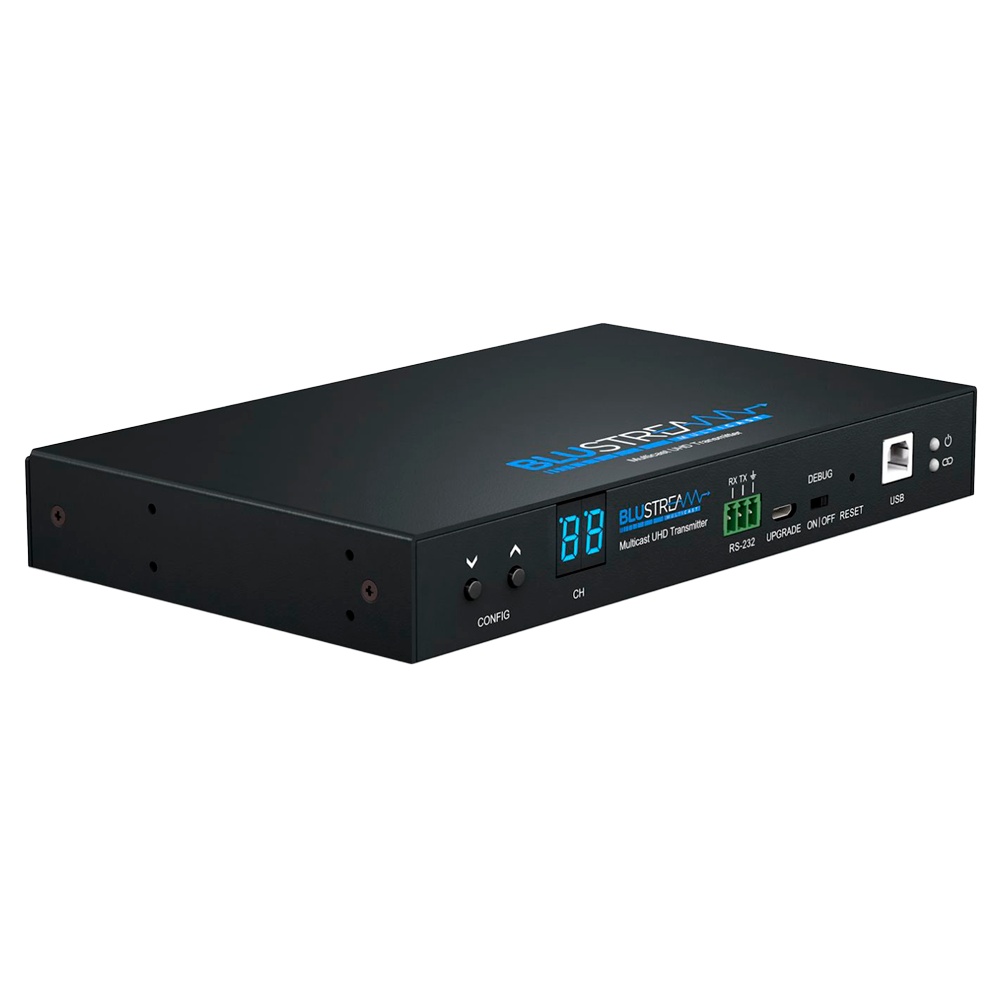

IP Video Transmitter - UHD Resolution - 1 HDMI input - 1 LAN output (RJ45) - KVM Function
€572.50
(IVA included)
€465.45
(Without IVA)
Description
| Functionality | - Distributor matrix (requires a 1GB network switch)) - Video Wal (requires a 1GB network switch)) - HDMI Extender 1: 1 (no network switch is not required) - HDMI Extensor 1: N (no network switch is not required) |
| Video input | 1x HDMI |
| Video output | 1x Lan (RJ45) |
| Latency | 1 frame (16-33ms) |
| Range | 100m on Cable Cat |
| Resolution | - 3840x2160@30Hz 4: 4: 4 - 4096x2160@24Hz 4: 4: 4 - 4k@60hz 4: 2: 0 |
| Edid | HDCP 2.2 |
| Audio input | 1x 3.5mm (analog audio l/r) |
| Audio exits | 2x RCA (Analog Audio L/R) |
| Audio formats | - Dolby Truehd - Dolby Digital Plus - DTS-HD Master Audio |
| Ethernet port | 1x Lan (RJ45) |
| Serial Gate RS232 | 1x Phoenix 3 Pin series connector |
| KVM/USB port | 1x USB-B |
| INPUT IV | 1x 3.5mm Jack Stereo |
| Exit IV | 1x 3.5mm Jack Mono |
| Pope | - 6.0W (typical) - 7.2W (maximum load) |
| Food | 24V ~ 56V |
| System Updates | 1x Micro-USB |
| Dimensions | 190mm (AN) x 114mm (AL) x 25mm (FO) |
| Weight | 0.8kg |
| Operating temperature | 0ºC ~ 40ºC |
