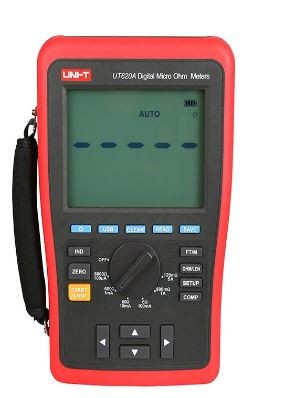

Isolation Resistance Meter - UNI -T

Description

Applications:
Metallic coating resistance testator, electromotor and small transformer winding strength. Grounding system junction point; The integrity of welding contact; Circuit breaker and switch; The connection of space vessels and the track; Amphenol connector and conductor junction; Multi-célula battery; The switching plate generator; Component contact resistance as a relay; Metallic material; Resistance of the wire and cable conductor; The soil resistance of PEM LK of ships, vehicles and aircraft.

Features:
1, low resistance range: 0.5mo ~ 6ko;
2, Tesing 10A to increase accuracy;
3, minimum resolution 10 UOHM;
4, Precision Bacis: 0.25%, four -wire test;
5, upper and lower test, making it convenient to classify the component,
And judge automatically whether the object is standard or not;
6, unique wire length design function, unit meter and the inch can be freely changed;
7, loading battery inside, long service life;
8, data can be stored, read, and deleted. Data storage is 1000;
9, USB interface.

- Food: Lithium batteries, 7.4 v 4000 mAh
- Size display: 116 x 87.5 mm
- Dimensions: 268 x 168 x 60 mm
- Weight: 1.5 kg


More info at: http://www.uni-trend.com/productsdetail_818_819_html
