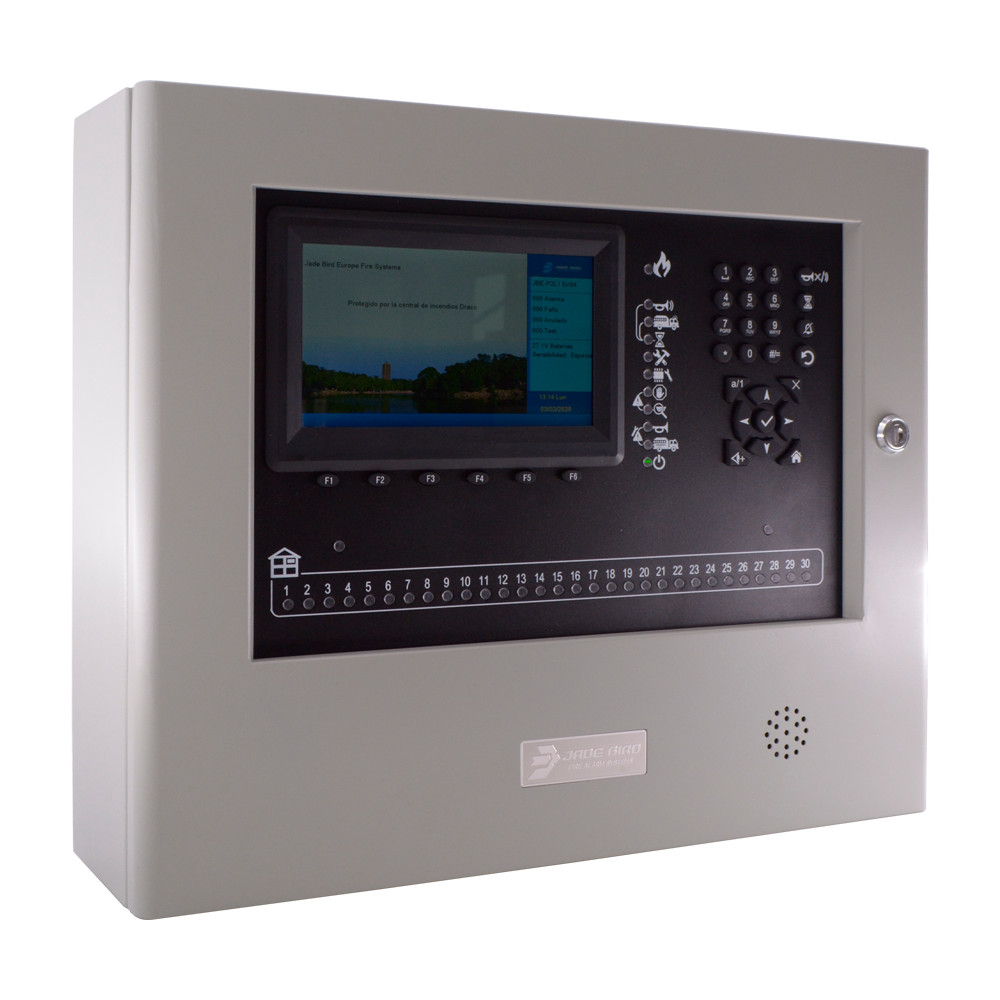

Jade Bird Analog Control Panel with 1 expandable loop - up to 200 tie devices - USB for programming and data update - 7 ”color LCD display - EN54-2 certificates, EN54-4
€404.10
(IVA included)
€328.54
(Without IVA)
Description
| Number of address ties | 1 (expandable to 2)) |
| Lace topologies selectable by the user | Class A (Ring) or Class B (Ask up to 32 devices) |
| 24 VDC outputs for field devices | 2 |
| Maximum number of devices | 200 (expandable to 400))) |
| Maximum number of output groups | 400 |
| Maximum loop distance | 2,000 m |
| Recommended cable type | 2 x 1.5 mm² Entrance With Mesh |
| Maximum number of localizable points | 200 by class A (Max 2 x 200)) |
| Lace | 20 ~ 30V |
| Current available per loop | 200 mA |
| External feeding outlets | 2 x 2a@24 vdc |
| Cable entrance | Perforations of Ø20 mm (14x) |
| Alarm and malfunction exits | Relay, open normally disabled (up to 2a@30 vdc) |
| Food | 230 VAC (196 - 253 V) 2.5a max. |
| Fuse of protection | 2.5 A |
| Max. Continuous output current (IMAX A) | 5.5 A |
| Max. Alarm output current DC (IMAX B) | 4 |
| Battery capacity | 2x 12v 7ah ~ 12ah |
| Operating temperature | -5 to +40 ° C |
| Storage temperature | -20 to +55 ° C |
| Humidity (without condensation) | <95 % |
| Degree of protection | IP30 |
| Dimensions | 440 (LG) x 370 (AL) X 126 (PF) MM |
| Weight (without batteries) | 4 kg |
| Standard | EN 54-2 and EN 54-4. |
| DOP | DOP-0370-CPR-3813-1 |
