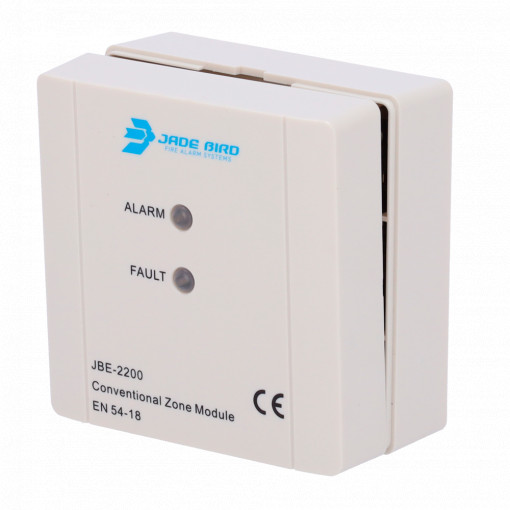

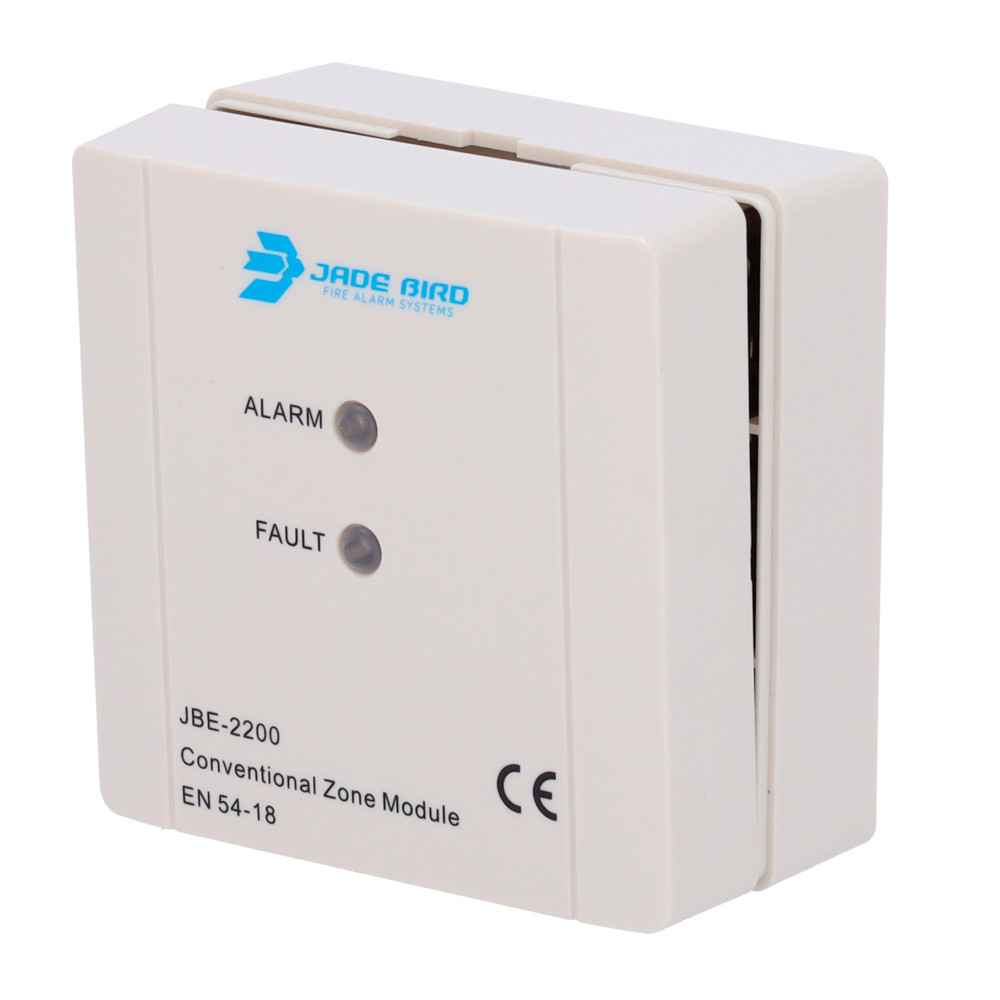

Jade Bird Analog Module - 1 Supervised Entry - Laço Power - Conductor Cable up to 2.5mm2 - 10 kΩ reol (supplied) - Certified EN 54-18
€19.08
(IVA included)
€15.51
(Without IVA)
Delivery cost is not included
Description
| Mark | Jade Bird |
| Type | Analog Module 1 Supervised Input |
| Working tension | DC 16 - 30 V |
| Connection | Communication Bus JBE 2-Hilos, without polarity |
| Wiring | Braided pair without mesh 0.5 - 2.5 mm2 |
| Standby Consumption | ≤0.25 ma @24 V |
| Active consumption | ≤1 ma @24 V |
| EOL resistance | 10 kΩ |
| Temp. work | 0 ℃ ~ +40 ℃ |
| Temp. storage | -20 ℃ ~ +60 ℃ |
| Environment | ≤ 95% hr (40 ± 2 ℃) (without condensation and without ice) |
| Addressing | JBE-AT1 Addressing Tool |
| Range of addresses | 1-200 |
| Red LED indicator | Rest: "Intermittent entrance with lace probing FAILURE: "INPUT" Activation: "input" fixed in |
| Dimensions | 85 × 85x41 mm (length x width x height) |
| Weight | 0.1 kg (including the base) |
| IP classification | IP40 |
| Certified | EN 54-18: 2005 EN 54-18: 2005/AC: 2007 |
