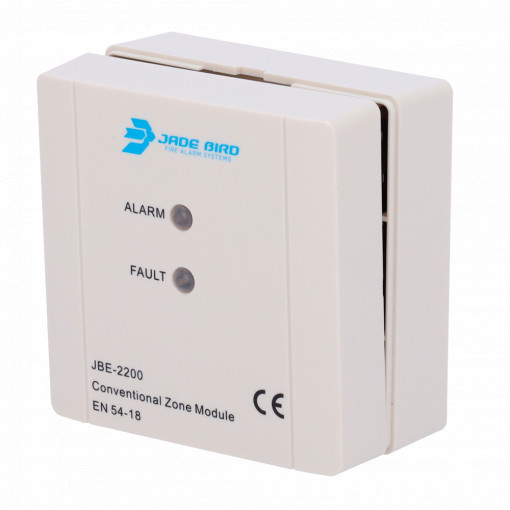

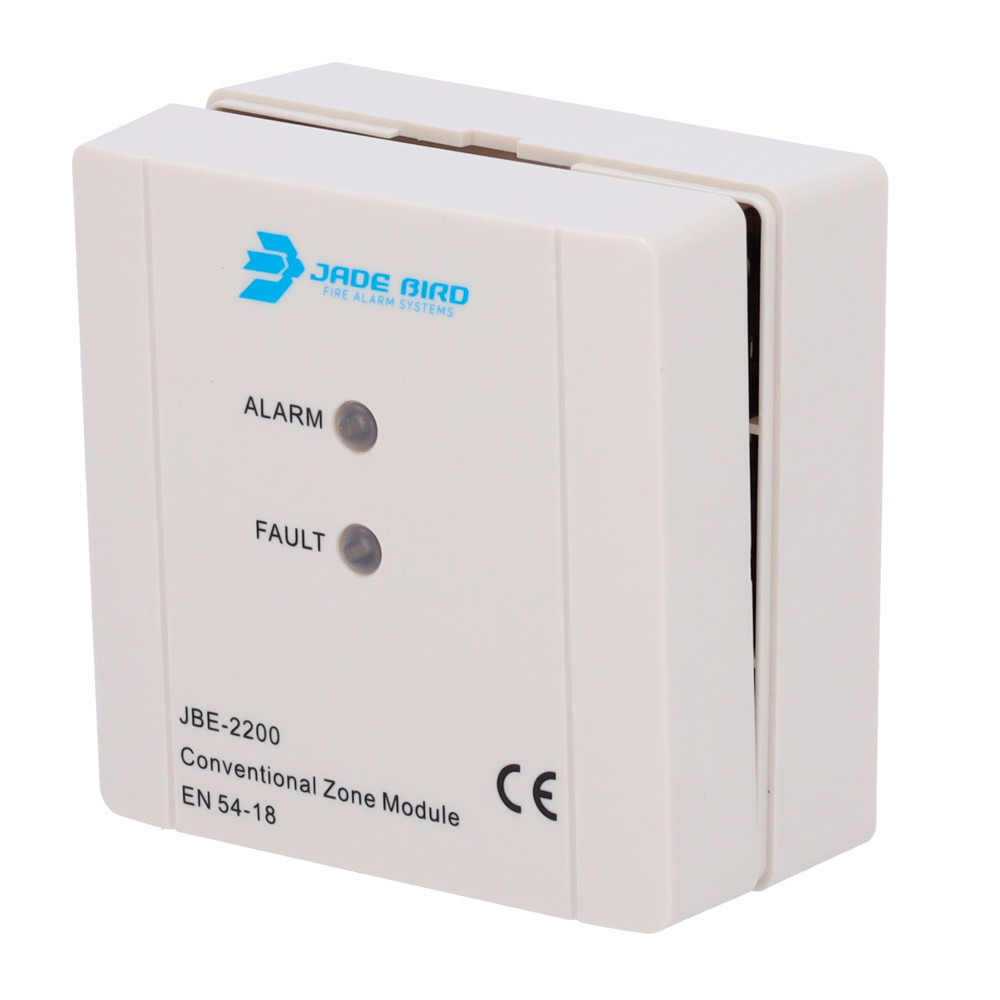

Jade Bird Analog Module - Conventional Zone Module - Loop or External Power Source - Conductor Cable up to 2.5mm2 - 4K7 Ω (supplied) - Certified EN 54-18
€44.30
(IVA included)
€36.02
(Without IVA)
Delivery cost is not included
Description
| Mark | Jade Bird |
| Type | Conventional zone module |
| Working tension | DC 19 - 30 V |
| Connection | Communication Bus JBE 2-Hilos, without polarity 24V DC to 2-Hilos power supply, without polarity |
| Wiring | Braided pair without mesh 0.5 - 2.5 mm2 |
| Loop energy consumption | ≤9 ma @24 V (LOOP CONSUMPTION - REST) ≤46 ma @24 V (LOOP CONSUMPTION - Active) |
| Energy consumption with 24VDC | ≤2 ma @24 V (LOOP CONSUMPTION) ≤8 ma @24 V (24 V DC Consumption - Rest) ≤42 ma @24 V (24 V DC - Active) |
| Reol | 4.7 kΩ |
| External PSU reol | 4.7 kΩ |
| Temp. work | -10 ℃ ~ +55 ℃ |
| Temp. storage | -20 ℃ ~ +60 ℃ |
| Environment | ≤ 95% hr (40 ± 2 ℃) (without condensation and without ice) |
| Addressing | JBE-AT1 Addressing Tool |
| Range of addresses | 1-200 |
| Red LED indicator (alarm) | Rest: Intermittent with lace polls Alarm: Permanent when activated |
| LED Orange Indicator (Fault) | Open: Fixed ignition Low voltage: flashes 1 once per second Short circuit: flashes 2 times per second About consumption: Continuous intermittent Restart: flashes during the restart (3 seconds) |
| Dimensions | 85 × 85x41 mm (length x width x height) |
| Weight | 0.1 kg (including the base) |
| IP classification | IP40 |
| Remote indicator | LED with or without series resistance (rs <4 kohm) |
| Certified | EN 54-18: 2005 EN 54-18: 2005/AC: 2007 |
