Lithium Battery - Li -ion Rack 19 ′ R4824
€1,075.00
(IVA included)
€873.98
(Without IVA)
Description

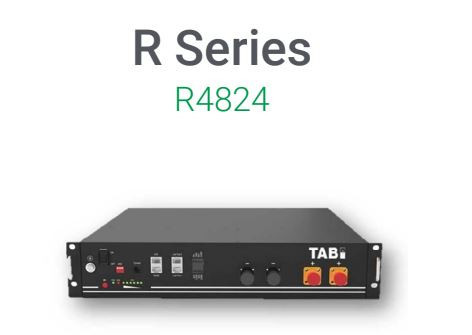

Rack Li-ion 19 ′ R4824
Solutions for applications in all power supply systems, including utility, residential, commercial and UPS scale.

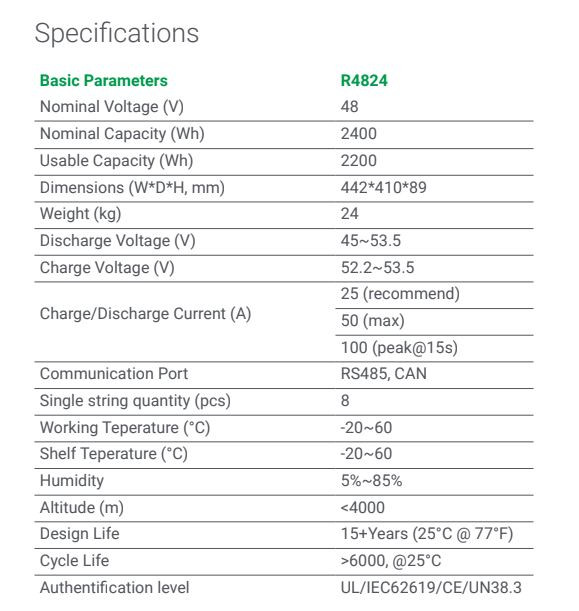

Specifications
Basic Parameters R4824
Nominal Voltage (V) 48
Nominal Capacity (WH) 2400
USABLE CAPACITY (WH) 2200
Dimensions (W*d*h, mm) 442*410*89
Weight (kg) 24
Discharge Voltage (V) 45 ~ 53.5
Charge Voltage (V) 52.2 ~ 53.5
Charge/Discharge Current (a)
25 (Recommend)
50 (max)
100 (peak@15s)
Communication Port RS485, Can
Single String Quantity (PCs) 8
Working TeperaTure (° C) -20 ~ 60
Shelf TeperaTure (° C) -20 ~ 60
Humidity 5%~ 85%
Altitude (m) <4000
Design Life 15+Years (25 ° C @ 77 ° F)
Cycle Life> 6000, @25 ° C
Authentification Level UL/IEC62619/CE/UN38.3
