Lithium Battery - Li -ion Rack 19 ′ R4836 Tab Batteries
€1,455.00
(IVA included)
€1,182.93
(Without IVA)
Description

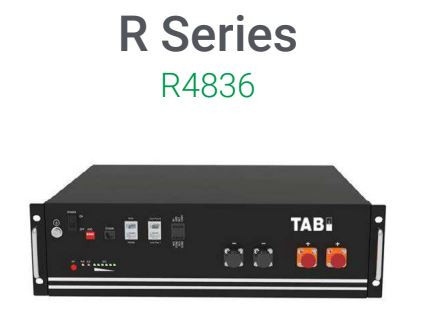

Rack Li-ion 19 ′ R4836
Solutions for applications in all power supply systems, including utility, residential, commercial and UPS scale.

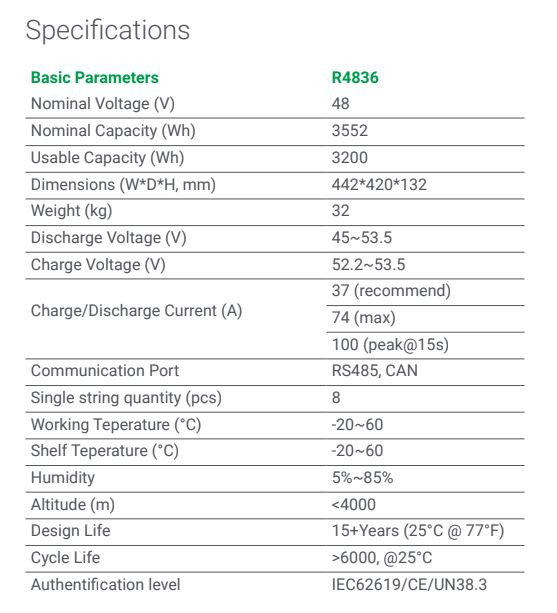

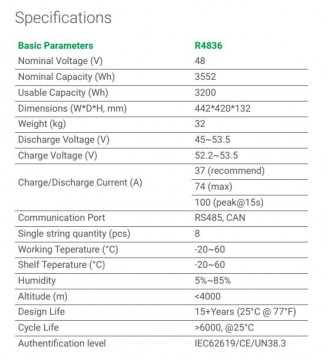

Specifications
Basic Parameters R4836
Nominal Voltage (V) 48
Nominal Capacity (WH) 3552
USABLE CAPACITY (WH) 3200
Dimensions (w*d*h, mm) 442*420*132
Weight (kg) 32
Discharge Voltage (V) 45 ~ 53.5
Charge Voltage (V) 52.2 ~ 53.5
Charge/Discharge Current (a)
37 (Recommend)
74 (max)
100 (peak@15s)
Communication Port RS485, Can
Single String Quantity (PCs) 8
Working TeperaTure (° C) -20 ~ 60
Shelf TeperaTure (° C) -20 ~ 60
Humidity 5%~ 85%
Altitude (m) <4000
Design Life 15+Years (25 ° C @ 77 ° F)
Cycle Life> 6000, @25 ° C
Authentification Level IEC62619/CE/UN38.3
