Lnb single hd 4k universal 1 simple output SRT L 701 strong
€1.99
/Un
(IVA included)
€1.62
/Un
(Without IVA)
Delivery cost is not included
Description

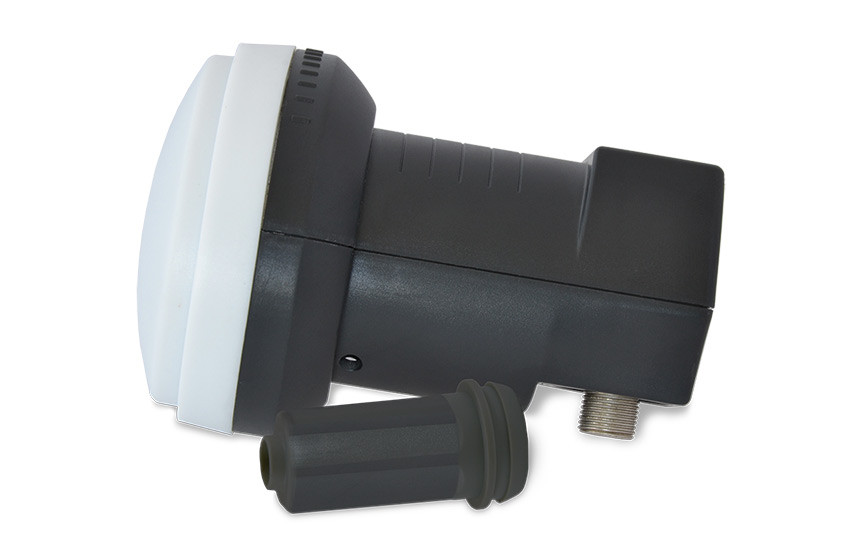

SRT L 701
General view of the product
- High performance technology
- Excellent reception of 3D TV channels, SD or HD
- Ideal for system expansion
- Extremely low noise factor (0.2 dB)
- Robust and weather resistant
High performance in SD and HD
To connect one or more receivers, the state -of -the -art Strong LNBs optimize signal intensity providing high performance and high TV image quality in all houses. Excellent reception of Digital SD and HD signals as well as 3D, low noise image and particularly robust, high -performance technology make Strong LNBs reliable and essential pieces of modern TV equipment.
| Technical data | |
| I/P frequency range | 10.7 ~ 12.75 GHz |
| Output frequency range | 950 ~ 2150 MHz |
| Frequency OL | Baixa: 9.75 GHz, high: 10.6 GHz |
| Initial accuracy OL (@ 25 ° C) | ± 1.0 MHz |
| Noise factor | 0.2 DB (Typ.) |
| Conversion | 50 ~ 62 DB |
| CC current consumption | 100 ma (max.) |
| Polarization switching tension | V: 10.5 ~ 14.2 V, h: 15.5 ~ 21 V |
| Band switching impulse | Baixa: 0khz, high: 22khz |
| Operating temperature | -40 ° C ~ + 60 ° C |
| Output connector | 75 Ohm F Type |
 General data |
|
| Dimensions (LXPXA) in mm | 59.5x59.5x105.3 |
| Weight, kg | 0.09 |
| Color | Gray |
| Mm assembly diameter | 4 |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
LNBSINGLE
EAN
8717185448931
Weight
0.2 kg
Manufacturer
