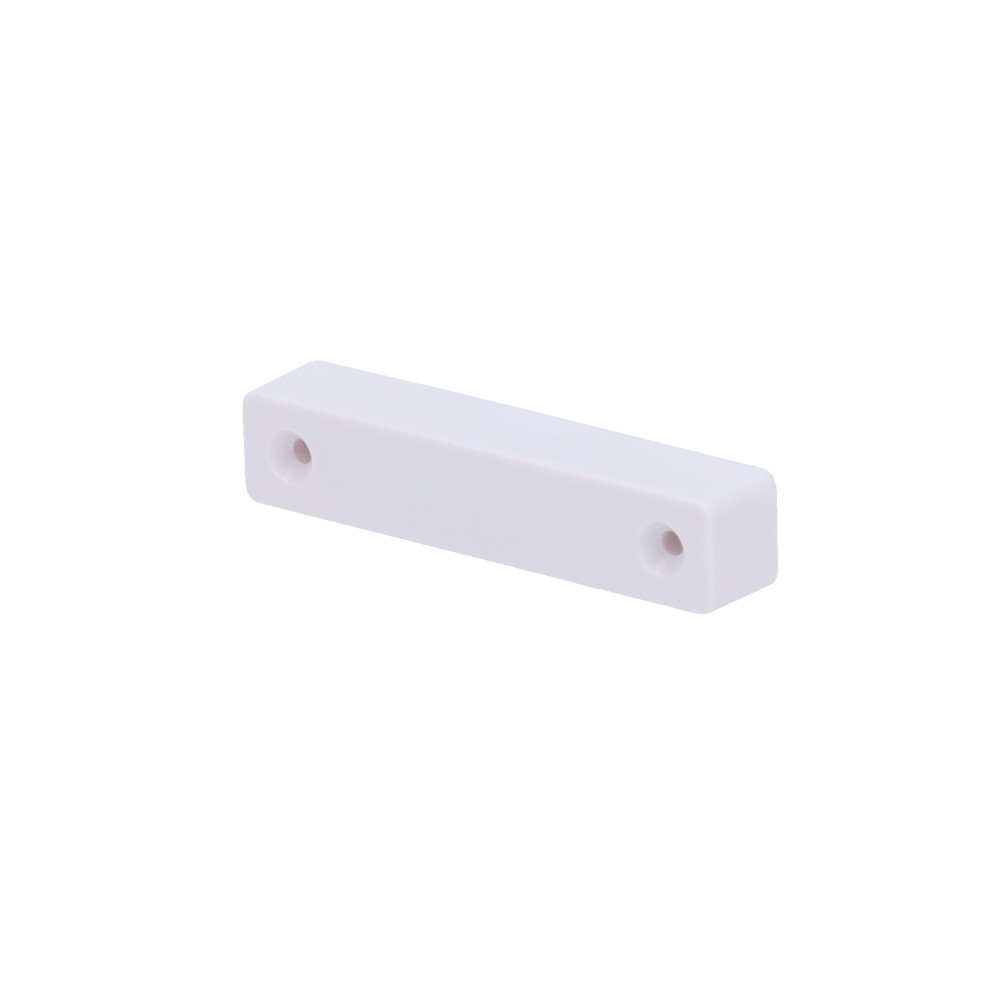

Magnetic Contact - Apt for Madeira Installation - Reed Technology - Terminal Connection System NO/NF - Mechanical and Electrical Shock Resistance
€4.59
(IVA included)
€3.73
(Without IVA)
Delivery cost is not included
Description
| Technology | Reed |
| Power | Average power |
| Maximum detection distance | Up to 20mm depending on the material where it is installed |
| Material | Plastic |
| Cable | Connector for 3 terminals (com/nc) |
| Magnet | Neodimian |
| Mechanical shock resistance | Up to 16kgs |
| Electric parameters | 100 vdc/vac max, 500 mA, 10W |
| Dimensions | Detector: 63.5 (LG) x 13 (AL) X 19 (PF) MM Imple: 63.5 (LG) x 12.8 (AL) x 12 (pf) mm |
