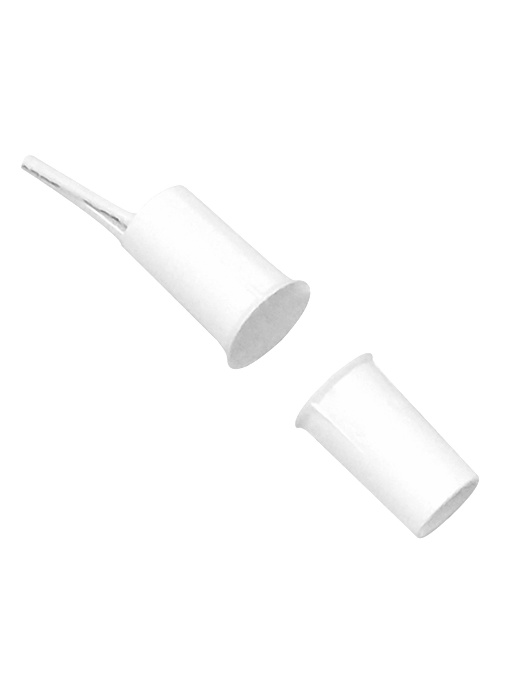

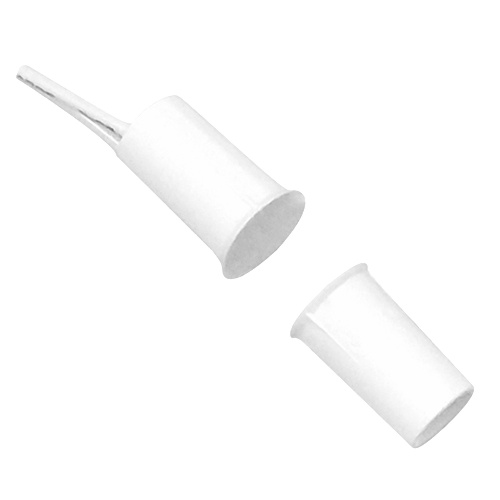

Magnetic Contact - Apt for wood installation - Reed Technology - 2 wire connection system - mechanical and electrical shock resistance
€1.53
(IVA included)
€1.25
(Without IVA)
Delivery cost is not included
Description
| Technology | Reed |
| Power | Average power |
| Contact type | Usually closed |
| Maximum detection distance | Up to 15mm depending on the material where it is installed |
| Material | Plastic |
| Cable | 2 wires |
| Cable length | 35 cm |
| Magnet | Neodimian |
| Mechanical shock resistance | Up to 15kgs |
| Electric parameters | 100 vdc/vac max, 500 mA, 10W |
| Dimensions | Detector: 17 x Ø11-9 mm Jam: 17 x Ø11-9 mm |
