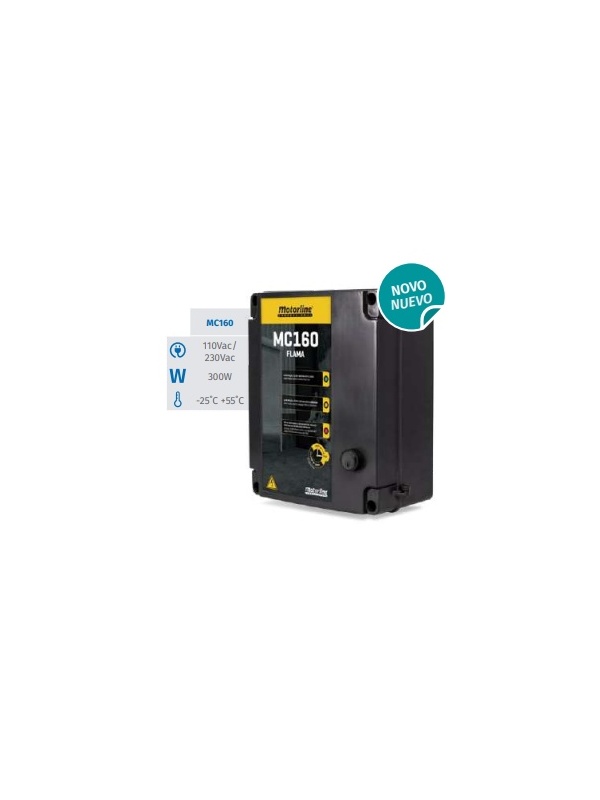

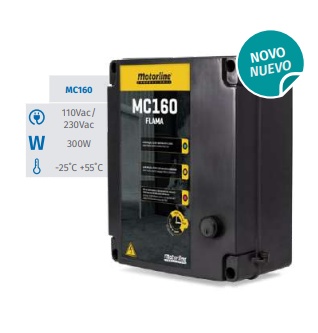

MC160 - Electronic Center 230VAC to control fire curtains with 24vdc engines up to 300W power

Description

230VAC Electronic Center to control fire curtains with 24vdc engines up to 300W power:
• Activation when receiving a sign of a detector, fire center (CDI) or energy failure
• Allows you to close the curtain to an intermediate position (if activated), allowing a safe evacuation on emergency exits and, after a time interval, closes completely
• Strength adjustment, sensitivity, speed, motion direction and softening points for precise and smooth curtain operation
• External signaling LEDs, which indicate the state of food and battery charge
• Key selector for easy alarm testing mode activation
• Panic button input for partial reopening in emergency cases
• Entries for sirens and signaling pyrilampos, in order to indicate the activation of the fire alarm
• Warning of obstructions in photochell, suitable for alerting objects that are blocking the curtain closure
• Included backup batteries that guarantee the operation, even in cases of lack of energy
• Auxiliary relays that allow curtain and electronic center, suitable for use in Building Management Systems (BMS) curtain (BMS)
• Display for easy system errors visualization
• Reset the alarm automatically or manual, facilitating the operation to the user
