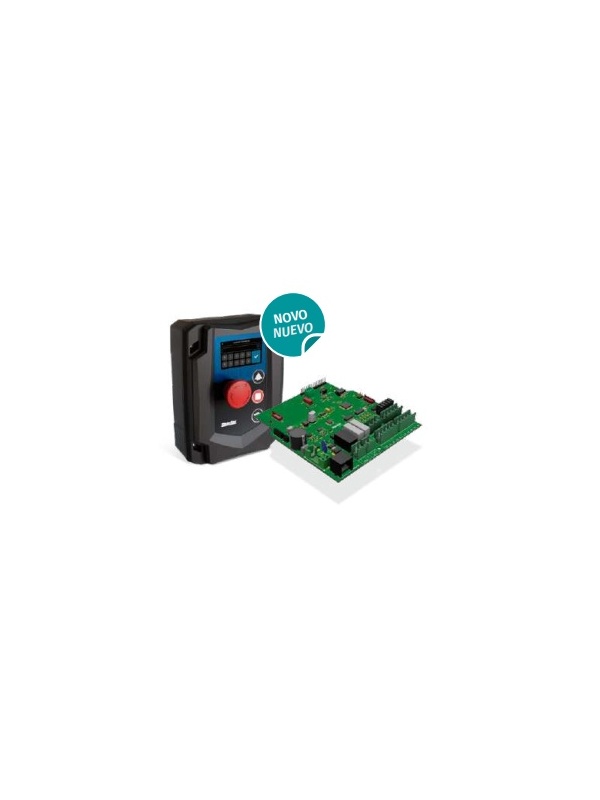

MC93-300 - Motorline Electronics Center

Description

Electronic Central Control for sectioned gates, equipped with an interactive tactile screen to make configurations, diagnoses and monitor the system. The Control Center communicates with the engine through an RJ45 cable, which provides 24VDC and integrates two RS485 communications for engine management.

System Structure:

• Control Center: To be installed in an affordable place, it allows you to easily program, make adjustments and connect the peripherals.
This center operates with a safe voltage of 24VDC, preventing short circuits and electrocussion
• Power Center: Integrated into the engine, controls gate movement and power management, available in 36V engine versions (backup battery consumer and charging and discharge) and 310V

Highlights:

• Record of errors: History stores of the errors, with date and time, enabling diagnostics • Date and time adjustment: synchronization via mobile phone
• Remote connection: Central configuration and firmware update via MConnect Link (Wi-Fi)
• Compatibility with MR15: Integrates wireless safety systems via radio, for example, with the MX14 emitter
• Radio receiver: frequency of 433.92 MHz, up to 200 commands (100 total + 100 pedestrian)
• Safety inputs: compatible with photochell, 8K2 and OE systems
• Miscellaneous outputs: for port state, programmable relay and accessories (24vdc 8W)
• Absolute encoder: precision in position control
• Course Programming: Performed manually
