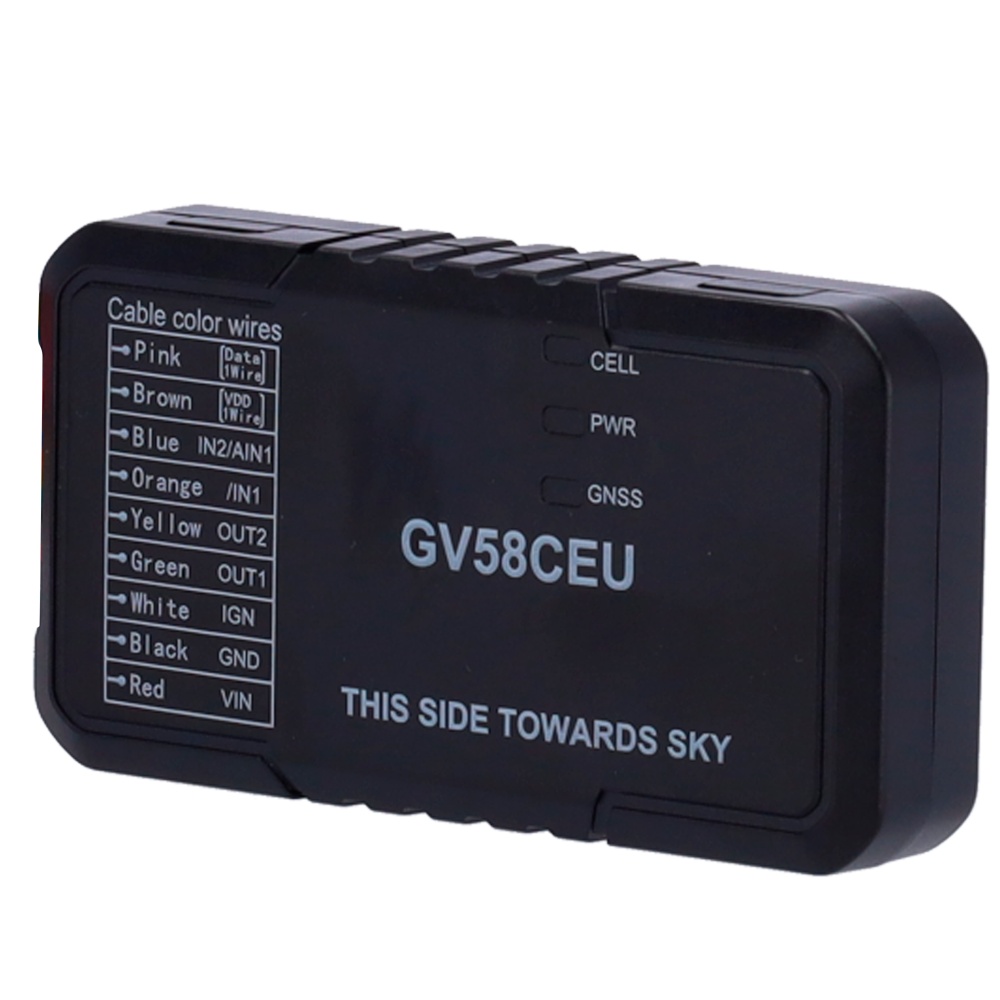

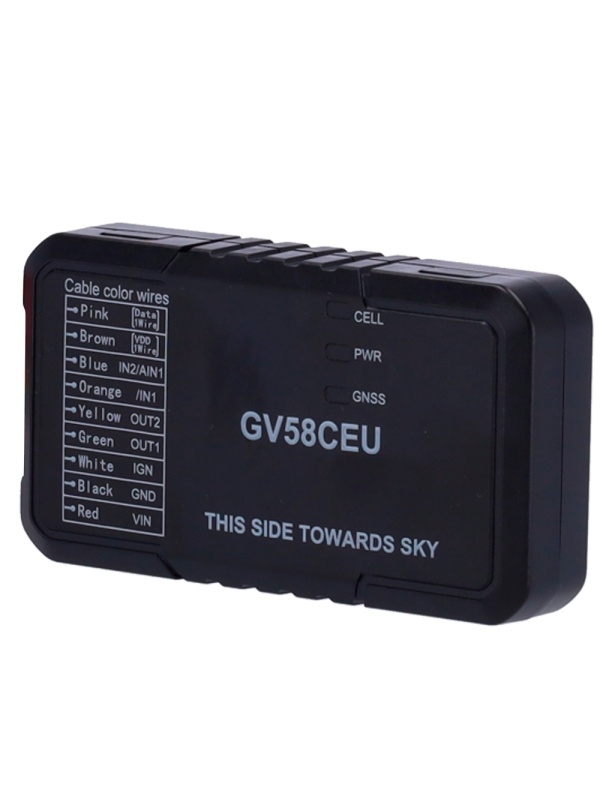

Mini Bajo Tracker Consumption - LTE CAT 1 CON BACKUP 2G - Compact for hidden installations - SOPorts 1 -Wire - Ble 5.2
€70.17
(IVA included)
€57.05
(Without IVA)
Delivery cost is not included
Description
| Mark | Queclink |
| Model | GV58 |
| Installation | Cabled conexion internal del vehicle |
| Operative band | LTE-FDD: B1/B3/B7/B8/B20/B28 |
| LTE DATES TRANSMISION | LTE-FDD: (DL) 10MBPS /(UL) 5MBPS |
| Freedom | 900/1800 MHz |
| Transmission of EGPRS dates | Edge: (DL) 236.8kbps (dl)/ (ul) 236.8kbps GPRS: (DL) 85.6kbps/(UL) 85.6kbps |
| GNSS type | U-Blox Gnss Receiver |
| Position | GPS, Glonass, Galileo, Beidou |
| Sensitivilidad | Starting in cold: -148 dbm Starting in caliente: -160 dbm EN March: -167dbm |
| PRECISION OF POSITION (ZIP Code) | Autonomus: <2.0m |
| TTFF | Starting in cold: 24s approx Starting in caliente: 1s approx |
| Dimensions | 86.7 (LA) X 46.4 (AN) X 18.1 (AL) |
| Weight | 80g |
| Backup beating | Polymer de Litio, 190 mAh |
| Food | 8V to 32V DC |
| Work temperature | -30ºC ~ +70ºC -40ºC ~ +80ºC for Almacenaje |
| Ble | Ble 5.2 Protocol |
| Digitales inputs | X1 Positive Activation Input for Erga Detection X2 Activation Inputs Negative (1 Configureble as Digital/Analog Input) |
| Digital salida | X1 Digital salida, usually Abindia, 150 mA of consumption max |
| BLOCKED DIGITAL SALIDA | X1 Digital Solida Con internal blockade, usually Abindia, 150 mAh of consumer max (reserved) |
| Cellular antenna | Internal soil |
| Gnss antenna | Internal soil |
| Ble Antenna | Internal soil |
| LED indicators | Cel, gnss, food |
| Interfaz Micro USB | To update y |
| Interfaz 1-wire | x1 (uplishes temperature sensors y lectors ibutton 1-wire) |
| Transmission protocol | TCP, UDP, SMS |
| Scheduled reports | POSITORMINENTO Y PIXED STATE EN TIMPO INTERVALES, DISTANCE, KILOMETRAJE La Combinación of DICHERS parameters |
| Geo-Fence | Geo-France alarm y Parking, bodies hast 20 region |
| Battery alarm baja | Warns cuando la Backup battery es baja |
| ENCINE INFORM | Informs cuando el device fills |
| Remock alarm | Notifies by Remolk Event Event |
| Supervision of conductor behavior | Deteccion of the aggression, including sudden frenzy, acceleration, etc. |
| Deteccion de Colicion | Recopiliation of Datos del Accident for Reconstruccion y Anaisis |
| Special alarm | Specials Basada In Las Inputs/Solida Digitales |
| Remote control | Control OTA on salisa digitales |
