Motorline tub 300e rolling engines

Description

* Crank sold separately

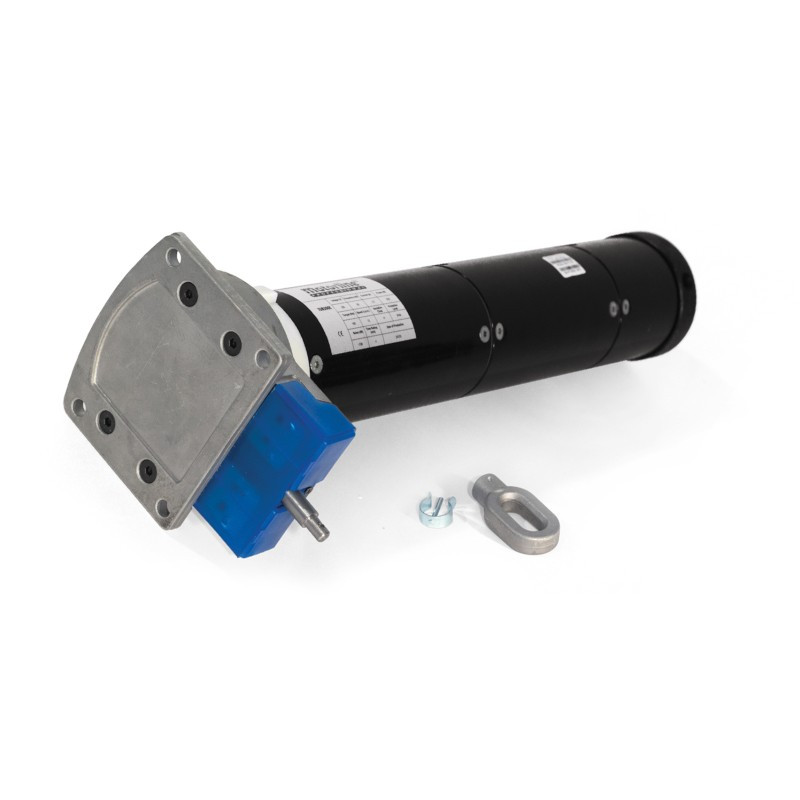

Motor for Estore Motorline Tub300E (300kg).
Professional engine for large and heavy blinds, up to 38 square meters approx.
Suitable for rolling doors, awnings or blinds in garages or stores, with a circular shaft between 97.5mm and 155mm Ø Inner diameter.
If nothing is indicated in the order notes, it will be sent with the appropriate MTL71 adapter (97.5 mm Ø External) to the 100 mm inner diameter shaft.
With control cable to connect the wall button or control panel. (2.5 meters long)
92mm engine diameter Ø.

Motor for Estore Motorline Tub300E (300kg).
Professional engine for large and heavy blinds, up to 38 square meters approx.
Suitable for rolling doors, awnings or blinds in garages or stores, with a circular shaft between 97.5mm and 155mm Ø Inner diameter.
If nothing is indicated in the order notes, it will be sent with the appropriate MTL71 adapter (97.5 mm Ø External) to the 100 mm inner diameter shaft.
With control cable to connect the wall button or control panel. (2.5 meters long)
92mm engine diameter Ø
Easy mechanical end -to -adjustment switches.
Possibility of crank for emergency unlocking.
Weight lifting up to 300 kg.
Kit composition:

Tubular engine with 2.5 m cable.
Support for engine crown placement.

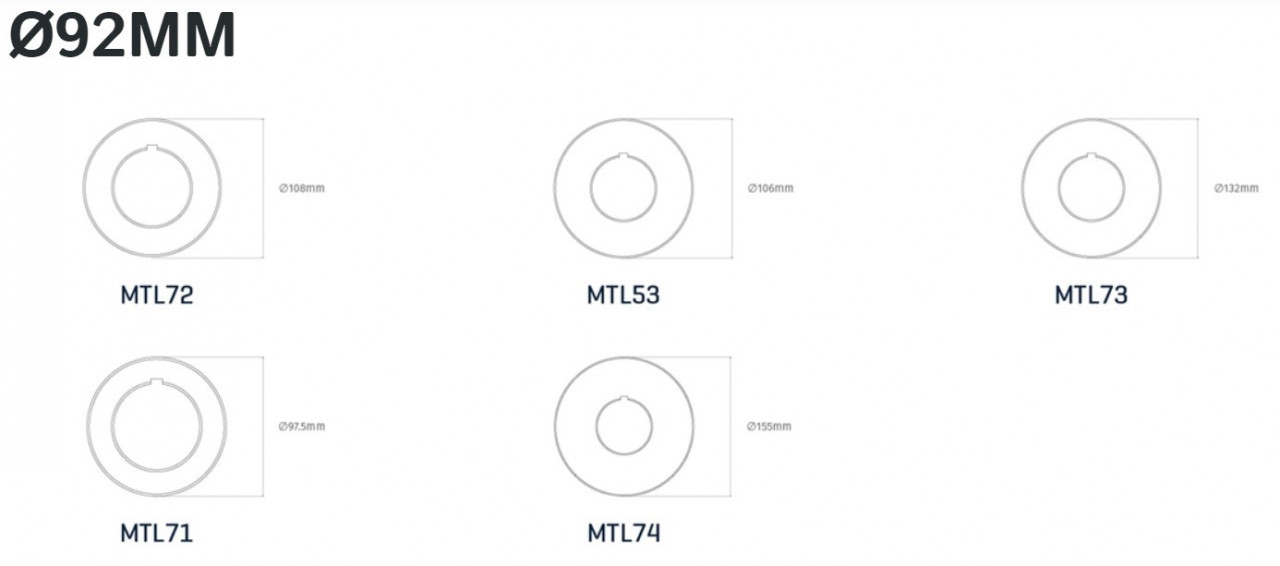

Adapters to the blind axis (indicate what you need in the order comments, if nothing is indicated in the order notes, will be sent with the MTL71 adapter of 97.5mm Ø external, which is suitable for the 100mm axis Ø inner diameter.).
Tool to adjust the course purposes.

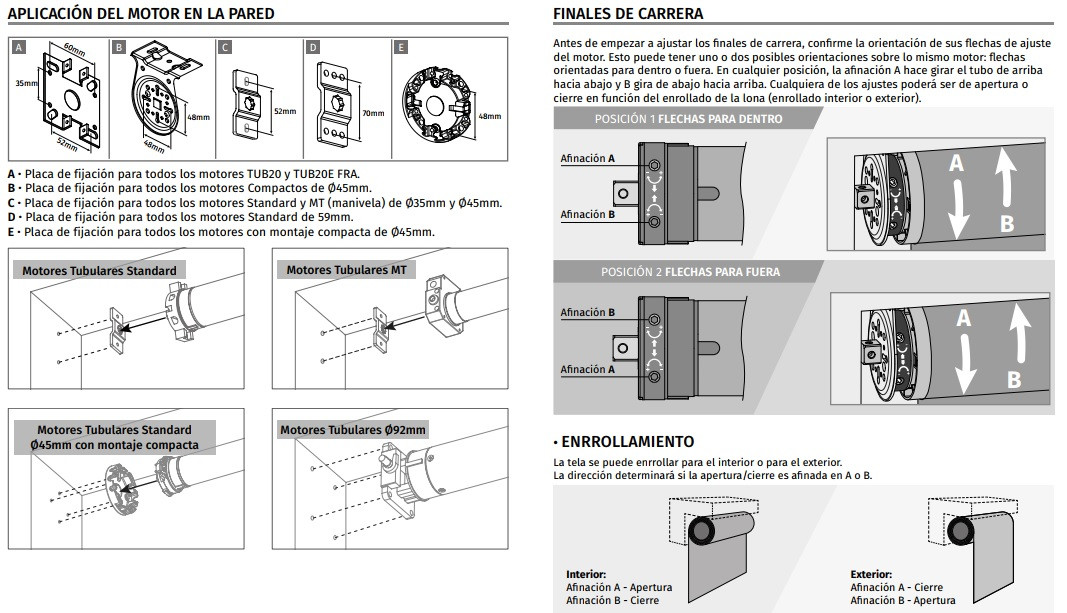

Assembly and installation manual.
