Multibrand and Multiform Bicanal Emitter - RXMULTI

Description

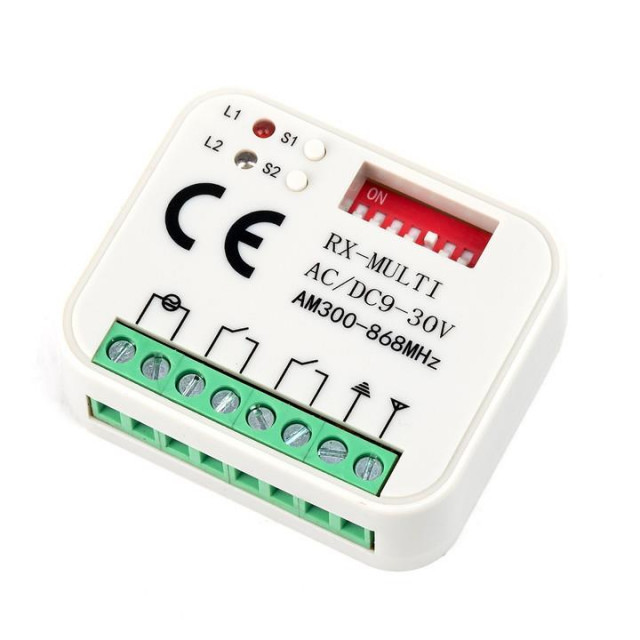

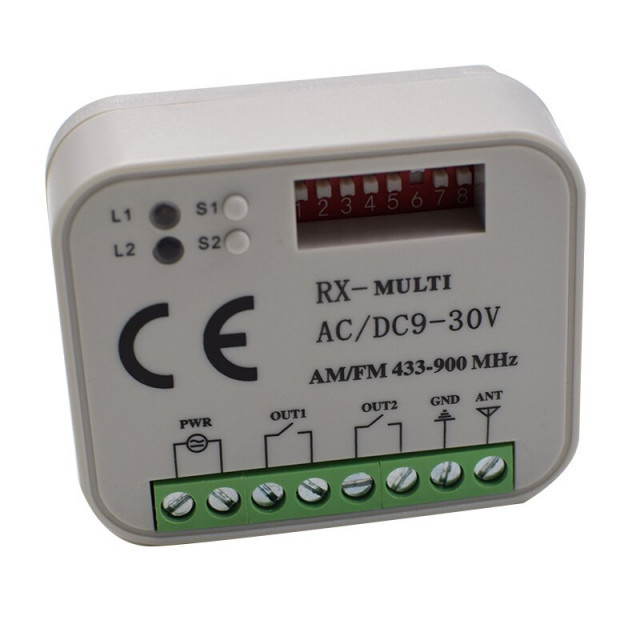

Multi / Multibrand RX Receiver

Select the command brand in the 8 DIP Switch's, the different combinations for the different command marks you want to insert in the receiver.
The receiver comes with the one with two different channels S1 and S2.
Receiver feed: with AC / DC 12V ~ 30V.
However, it is better to change Jup according to the power input. If the input is greater than 24 V, shorten pin 2 and 3 shorten; shortening 1 and 2 if the input is less than 24V.
Radio Card: The memory card can be removed from the Multi RX receiver.
6. How to save and exclude commands.
Recording or command button:
1. First, select the correct command mark from the DIP key;
2. Press the programming button, the LED lights. Press the command button, if
Flading 4 times, this button is recorded on the RX-Multi receiver correctly.
Compatible with the following brands

ALLMATIC; APRIMATIC; Beninca; Berner; BFT; Came; Cardin; Clemsa: Crawford - Normstall; DEA: Ditec; Doorhan; Ducati; EINHELL; Eron; Erreka; FAAC; Genie; Gibidi; Hörmann: JCM: Key; King Gates; LIFTMASTER; Marantec; Automateasy; Motorline; Motorlift; Nice; Norton; NovoFerm; Pastel; Protection; Pujol; Roger; Rolltore: Skymaster; Somfy; Sommer; Stagnoli; Telcoma; TANGO; Teleco; V2
