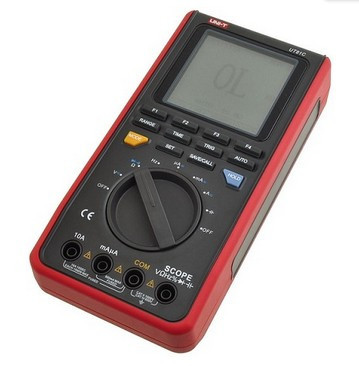

Multimeter and digital oscilloscope with USB interface - UNI -T

Description

DC Voltage: 400MV / 4V / 40V / 400V / 1000V
- Precision: + / - (0.8% +8)
AC Voltage: 4V / 40V / 400V / 750V
- Precision: + / - (1.0% +15)
Current DC: 400? A / 4000? A / 40 mA / 400 mA / 4A / 10A
- Precision: + / - (1.0% +8)
AC current: 400? A / 4000? A / 40 mA / 400 mA / 4A / 10A
- Precision: + / - (1.5% +8)
Resistance: 400 ohm / 4 ohm / 40 ohm / 400 ohm / 4 Mohm / 40 h
- Precision: + / - (1.0% +5)
Capacity: 40NF / 400NF / 4? F / 40? F / cap 100uf
- Precision: + / - (3.0% +8)
Frequency: 10 Hz - 10 MHz
- Precision: + / - (0.1% +3)
Vertical accuracy: + / - 5.0% (1)
Input Sensitivity: 20 mv / DIV -500V / DIV (1-2-5)
Horizontal accuracy: + / - (0.01% +1)
Time interval: 100 ns / div-5 s / div (1-2-5)
Band width: 8mhz
Screen Resolution: 160x160
Real Time in Steps: 40ms / s
Work Cycle: 0.1% ~ 99.9%

Special resources:
Diode
Acoustic test
160 x 160 monochrome display
Types of trigger: open / normally / step
Memory: 10 seconds after beginning
Contrast and shine adjustment
Suspension mode
Battery indicator
USB
Input impedance to the DC voltage: 10 Mohm
Retroilimination
Max. 3999 display (60 x 60 mm)

Supply of 4 batteries 1.5V (R6)
Dimensions: 200 x 100 x 48 millimeters
Weight: 498 g
The package includes test cables ...
