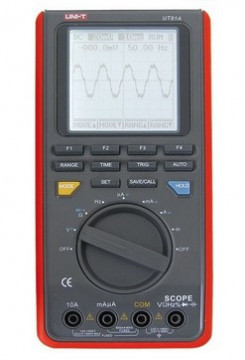

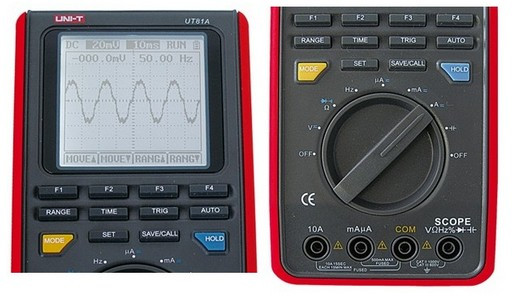

Multimeter and digital oscilloscope with USB interface - UNI -T

Description

- With USB interface and oscilloscope function
- Voltage DC: 400MV / 4V / 40V / 400V / 1000V
- AC Voltage: 4V / 40V / 400V / 750V
- Current DC: 400µA / 4000µA / 40MA / 400MA / 4A / 10A
- AC current: 400µA / 4000µA / 40MA / 400MA / 4A / 10A
- Resistance: 400ohm / 4kohm / 40kohm / 400kohm / 4mohm / 40mohm
- Capacitance: 40NF / 400NF / 4µF / 40µF / 100µF
- Frequency: 10Hz..10mhz
- Vertical accuracy: +/- (5% +1)
-Input sensitivity: 20mv / DIV-500V / DIV (1-2-5)
- Horizontal accuracy: +/- (0.01% +1)
- TimeBase Range: 100NS/DIV- 5S/DIV (1-2-5)
- Band width: 8mhz
- Duty Cycle: 0.1% ~ 99.9%
- Real -time sampling: 40ms / s
- Diode test
- Sound warning of continuity
- Memory: 10 Screen and Settings
- With control of shine and contrast
- Sleep mode
- Weak battery indication
- DC input impedance: ~ 10mohm
- Retroiliminated screen
- Dmm Max screen. 3999 (160x160, monochrome)
- Works with 4 AA batteries (included) or with the 6V 450MA power supply included
- With protection bag

Dimensions: 200x100x48mm
Weight: 500g
