Multimeter dig. ESC. Automatic and med. Res. Uni-T isolation

Description

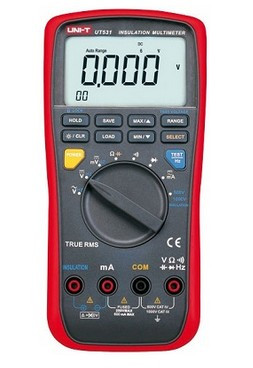

Digital multimeter with automatic scale and insulation resistance meter.

- Isolation resistance measurement: 500V: 0.5mohm ~ 99.9mohm +/- (3% + 5), 100mohm ~ 500mohm +/- (3% + 5)
1000V: 4.0mohm ~ 99.9mohm +/- (3% + 5), 100mohm ~ 600mohm +/- (3% + 5)
- Voltage DC: 6V/60V/600V/1000V (0.3%+ 4)
- AC Voltage: 60mv/600mv/6V/60V/600V/1000V +/- (0.4% + 4)
- Current DC: 60MA/600MA +/- (1.0% + 2)
- AC current: 60MA/600MA +/- (1.5% + 2)
- Resistance: 600 ohm/6kohm/60kohm/600kohm/6mohm/40mohm +/- (0.9% + 2)
- Capacitance: 10NF/100NF/1UF/10UF/100UF +/- (3% + 5)
- Frequency: 60Hz/600Hz/6KHz/60KHz/600kHz/1mHz +/- (0.1% + 3)

- Automatic scale
- Diode test
- Sound warning of continuity
- True RMS
- Data Hold
- Data Logging: 99
- Weak battery indication
- Sleep mode
- Max mode./Min.
- 81x46mm retroiluminated screen
- Dimensions: 97 x 203 x 46mm
- Weight: 505g
