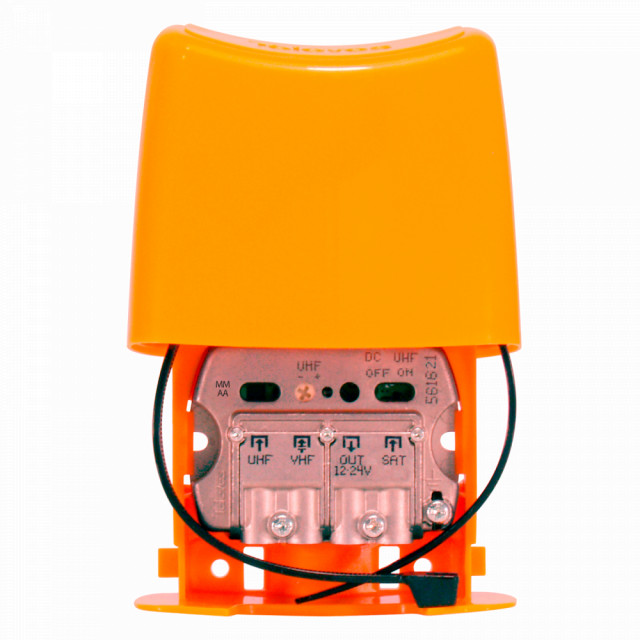

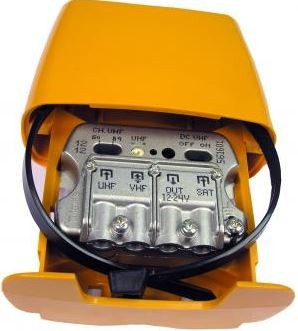

Nanokom 3E/1S "Easyf" amplifier: UHF [DC] -FM/Biiimix-Fimix [DC] G 24-(-1.5)/(-1.5)-(-2.5) dB vs 104dbµV w/uses. Alim. 12 ... 24V (Passage DC Commutable)

Description

Nanokom mast amplifier (LTE700, 2nd Digital Dividend). 3 Inputs: UHF-VHFMIX-FIMIX. Mast installation amplifier to amplify and mix terrestrial and satellite television signals from various antennas. It has 3 inputs: the signal is amplified at the input of UHF, while the VHF and FI (SAT) only mix. Allows DC passage to satellite input to feed LNB.RED Compliant. It has user selectable Output Signal technology: The installer selects the desired output level, which remains stable. The device automatically adjusts to adapt the gain to input signal variations. Separate amplification and very low noise figure, thus respecting signal quality. Ultra-reduced ergonomic design. Easyf connection system. They can be fed from 12 to 24V. Completely automated and rigorous quality controls. High shield chassis, made of zamak.
