Nanokom 3E/1S "Easyf" VHFMIX-UHF [DC] -Fimix [DC] with uses + f. Picokom 1e/1s "Easyf" 12V-220ma (Refs.561621 + 5796) (blister t1)

Description

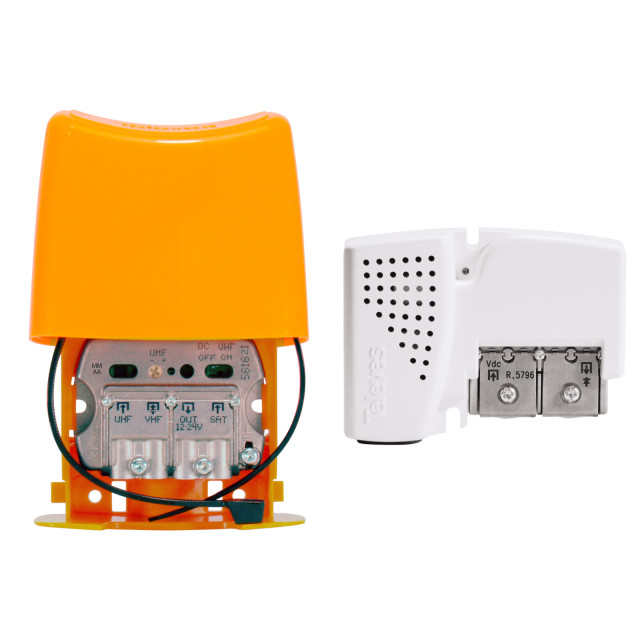

Nanokom mast amplifier kit and Picokom power supply. Ref. 561621 + Ref. 5796. Kit composed of: Ref. 561621: Nanokom mast amplifier, 3 inputs: UHF-vhfmix-fimixandnbsp; andnbsp; andnbsp; andnbsp; Mast installation amplifier to amplify and mix terrestrial and satellite television signals from various antennas. It has 3 inputs: the signal is amplified at the input of UHF, while the VHF and FI (SAT) only mix. Allows DC passage to satellite input to feed the LNB. Ref. 5796: Picokom power supply (for fimix) 12V - 220ma, 1 12V source output (220ma), which sends power through the input coaxial cable, allowing the TV signal to pass. Stem in the installation to feed mast amplifiers or a BOSS system. It is compatible with satellite -mixture amplifiers (FIMIX), automatically detecting at the exit the existence of a LNB (voltage and impulse) management signal generated by a receiver, and allows its passage to input. . It has user selectable Output Signal technology: The installer selects the desired output level, which remains stable. The device automatically adjusts to adapt the gain to input signal variations. Separate amplification and very low noise figure, thus respecting signal quality. Ultra-reduced ergonomic design. Easyf connection system. They can be fed from 12 to 24V. Completely automated and rigorous quality controls. High shield chassis, made of zamak.
