Nice pirilampo led era, 12/24v eldc

Description

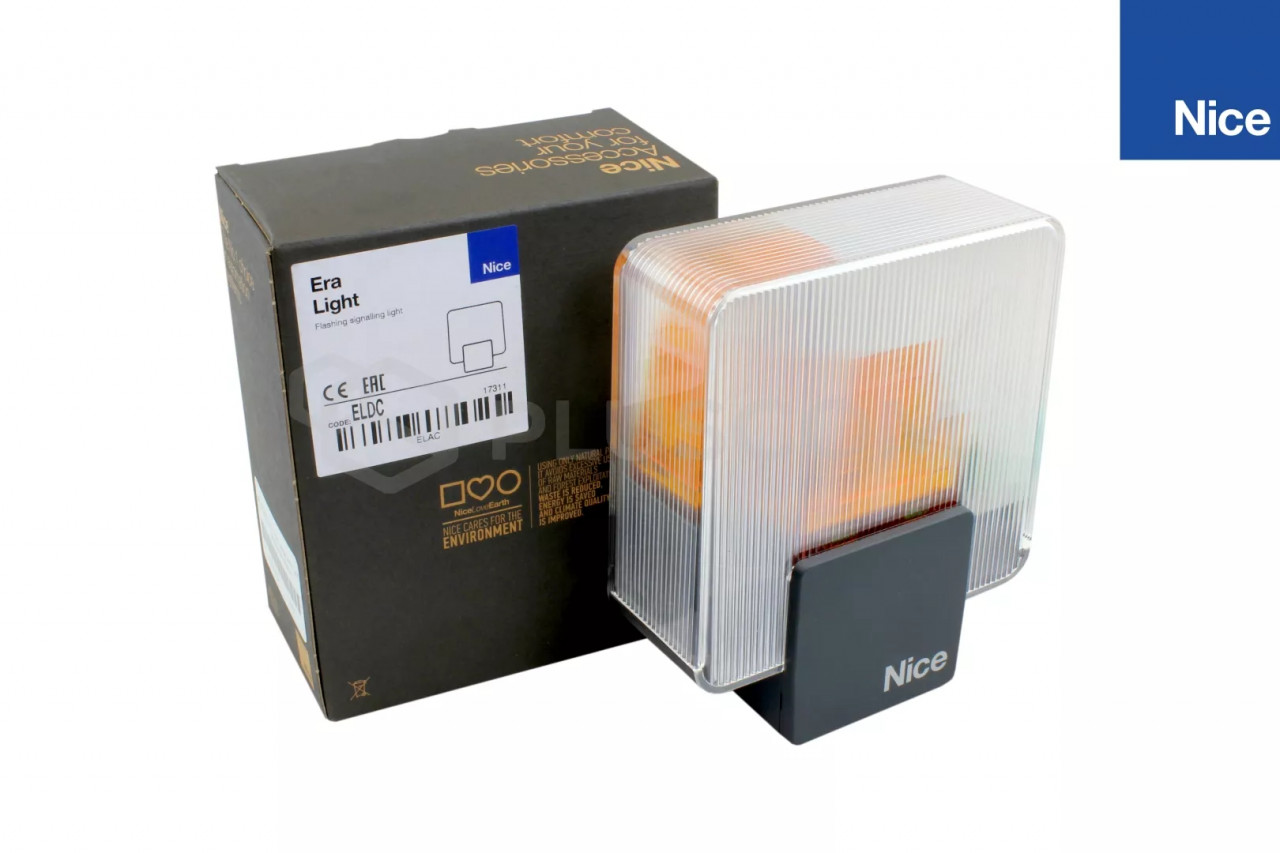

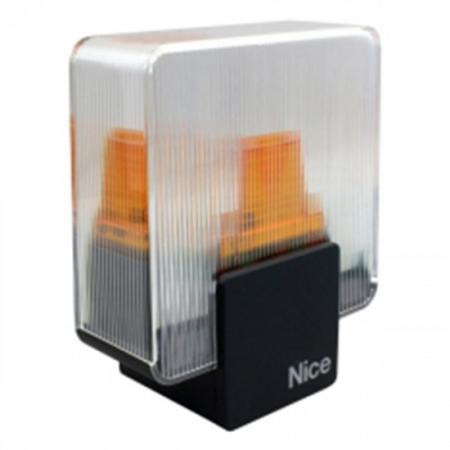

Nice pirilampo led era, 12/24v eldc

The Nice Eldc signal lamp is designed to function in garge or barriers automation systems.
It is an element that increases the safety of use of automation. Approaching the gate, thanks to the lamp, we know that the actuator started the opening cycle. The characteristic form is the first element that allows you to recognize the installed Nice automation.

The lamp cooperates with the control panels that provide voltage of 12 / 24V at the warning lamp output. The light source is a super bright LED that emits white light. Above, an orange shadow was installed that spreads the light. LED is a reliable, shock and energy saving light source

The housing made of high quality materials is resistant to adverse weather conditions. The lamp can be installed in a vertical or horizontal plane. A 433.92MHz antenna was integrated into the lamp compartment using a 50 OHM RG58 coaxial cable, which we connected to the center panel output, significantly increasing the range of pilots.

The reliable LED and lamp in shockproof polycarbonate ensure a long and smooth life life.

SPECIFICATIONS:

• Power supply: DC 12-36V
• Source of Light: Energy Economy LED
• Energy Consumption: Max 4W
• Integrated Antenna of 433.92 MHz
• Inlaid helicopter operating cycle: 50% (5s ton, 5s tof)
• Dimensions: 132x72x155 (h) mm
• Degree of Protection: IP44
• Working Temperature: -20 ° C… 50 ° C
• The lamp works with the following control panels:
• NICE MC424L, MC824H, A924
• Robus, Road, Run actuators
• Automation of doors of other manufacturers with 12 / 24V signal lamp output
