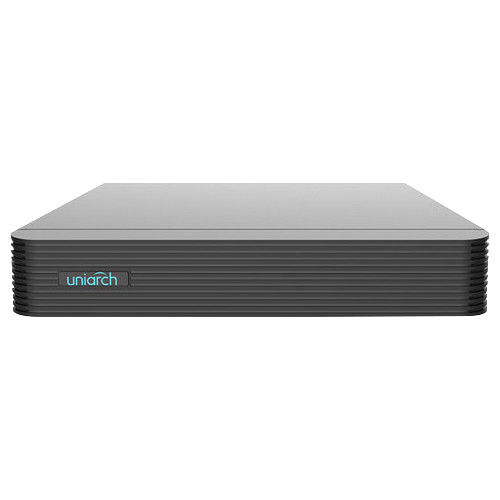

NVR Recorder for IP Chambers - Uniarch - 16 CH Video / Ultra 265 Compression - HDMI Full HD and VGA - MAXIMUM RESOLUTION 6MPX - Admits 1 hard disk
€51.03
(IVA included)
€41.49
(Without IVA)
Delivery cost is not included
Description
| Mark | Uniarch |
| IP Chambers inputs | LAN DOOR UP TO 16 CHANNELS |
| Compatible IP chambers | UNIVIEW, Onvif |
| Main Stream recording | 6mpx / 5mpx / 4mpx / 3mpx / 1080p / 960p / 720p / d1 / 2cif / cif |
| Decoding | 1x6mpx @ 30fps / 1x5mpx @ 30fps / 2x4mpx @ 30fps / 2x3mpx @ 30fps / 4x1080p @ 30fps / 8x720p @ 30fps / 16xd1 @ 25fps |
| Bidirectional audio | 1 RCA output |
| Video exits | 1 HDMI Full HD, 1 VGA |
| Video Compression Format | Ultra H.265 / h.265 / h.264 |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total Band Width | 64 mbps input / 48 mbps output |
| General functions | Movement detection, human body detection, video loss, alarm input * To receive alarm input events, a chamber with alarm inputs is required |
| Smart Chamber Functions | Area intrusion, line pass, area input, area output, audio detection and PTZS self-tracking configuration * An IP chamber is required with these functions to be able to perform definitions and research from the recorder |
| SIP (SMART INTUSION Prevention) from the Chamber | Supported in 4ch. Only alarm reception, without alarm image reception) * Needs an IP chamber with SIP function |
| External backup | USB / HDD memory USB |
| Internal storage | 1 HDD SATA 3.5 "up to 6 tb (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web browser, smartphone app and PC software |
| Food | DC 12 V, <7W (no hard disk) |
| Operating temperature | -10ºC ~ +55ºC |
| Dimensions / Weight | 42 (AL) X 190 (AN) X 195 (FO) MM / 1 Kg |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
UV-NVR-116S3
EAN
6937096357968
