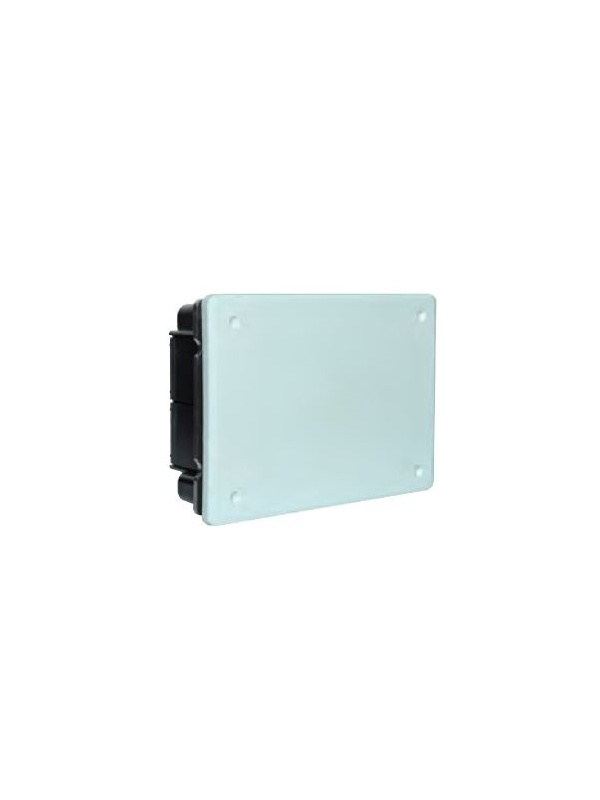

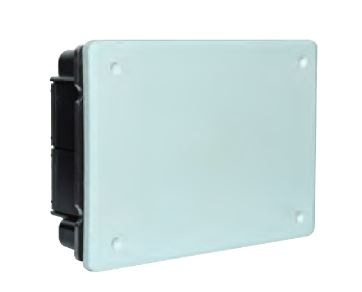

OMNIUM CX100150MZ - BOX Embed 100x150x50mm with lid

Description

OMNIUM CX100150MZ - BOX Embed 100x150x50mm

Technical file
Reference: CX100150MZ
Directive: 2014/35/EU
Certification: UNE EN60670-1-2022, UNE EN60670-22-2007
Code EAN: 8433403238619

Technical Characteristics:
Dimensions: 100 x 150 x 50 mm
Material: ABS (no halogeneous)
Color: Black
Class: II
Assembly: Construction embedded
Inputs (background): 4 x Ø25mm, 2 x Ø32mm (pre-perforated)
Inputs (sides): 10 x Ø32mm (pre-cut)
Ball pressure test: 90ºC
Incandescent wire test: base 650ºC (cover 850ºC)
Degree of Protection: IP30
Impact Resistance: IK07
Maximum operating voltage: 1000 V ca (1500 V CC)
Installation Temperature: -15ºC / +60ºC

Installation:
Install only on walls, ceilings or non -fuel floors.
Make the necessary openings in the inputs and remove the protective walls if necessary.
requested.
Fix the box to the support using the method indicated for the assembly material.
Comply with local electrical standards and applicable installation codes.
Keep the area around the obstruction and dirt free box and make checks
Periodic inspection of the box to ensure that there are no signs of wear or damage.
