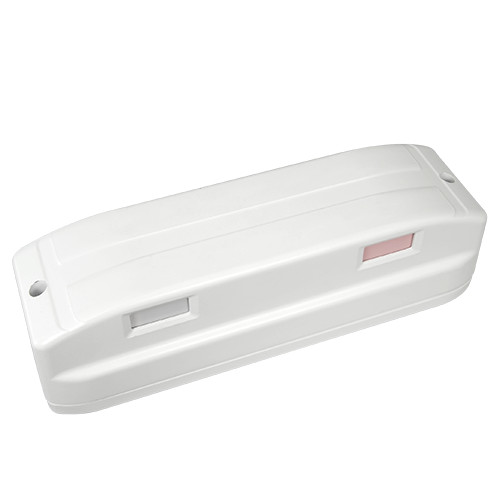

PIR Detector - Integrated Ajax Transmitter - Microwave and Double Curtain Type - Double PIR 9 M per CDA Side - Open Space range 1600 m - Outdoor use
€127.57
(IVA included)
€103.72
(Without IVA)
Delivery cost is not included
Description
| Technology | Microwave and Double Curtain PIR |
| Microwave | 24 GHz / Adjustable |
| Pir lens | 4 zones (2 and, each side) |
| Detection field | 9 m / installation 1 ~ 1.2 m |
| Frequency | 868 MHZ Jeweller with ajax transmitter included |
| Transmission distance | ≤ 1600 m in open space |
| Masking | Unavailable |
| PIR SENSITIVITY | Adjustable. 3 levels on each side |
| Anti-opening | Available |
| LED indication | Alarm |
| DIP Switch Setup | Activation, range pir and and/or (independent with each side), battery saving mode and LEDs |
| Cabbada exits | Left side alarm, right side alarm, tamper and transmitter power supply |
| Food | 1 Er14505 3.6 V |
| Consumption | Minimum consumption (rest: 60 UA / maximum: 20 mA) |
| Temp. operation | -20 ° C ~ 70 ° C |
| Degree of protection | IP65 |
| Dimensions | 220 (AL) x 70 (LG) x 60 (FD) mm |
| Weight | 550 g |
