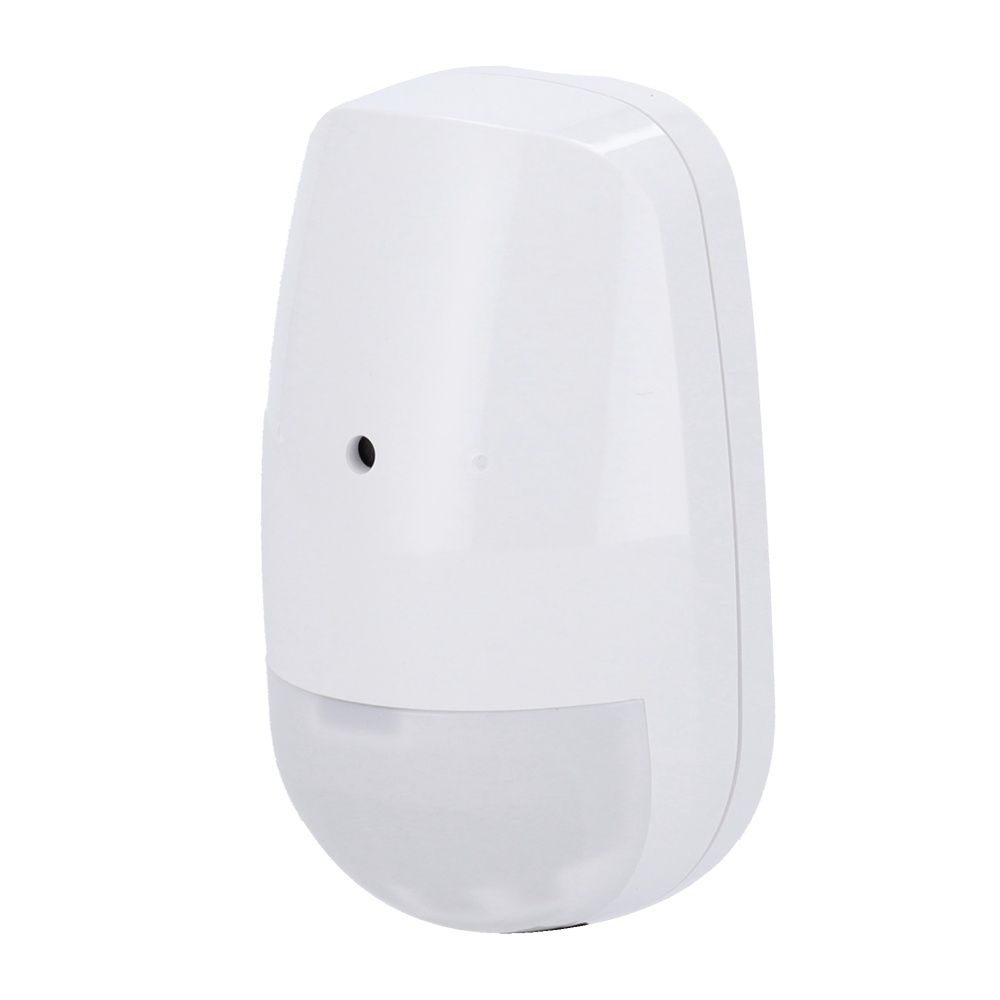

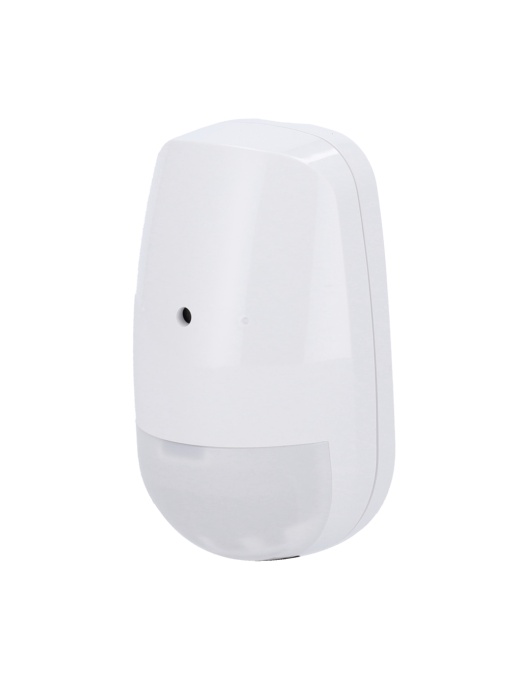

PIR WITH WIRE AND GLASS BREAKING DETET - PIR 12 M/GLASS BREAKING 8 M - PURRENT ANIMALS UP TO 30 KG - END LINE RESISTANCES (EOL) SELECTIBLE - Food 9 ~ 16 VDC - Certificate Grade 2
€29.04
(IVA included)
€23.61
(Without IVA)
Delivery cost is not included
Description
| Mark | Hikvision |
| Model | Ds-pdpg12p-eg2 |
| Degree of security | Grade 2 |
| Technology | Passive infrared and acoustic sensor |
| Detection range | 12 meters |
| Detection angle | 85.9º |
| Detection zones | 52 |
| Glass Breaker Detection range | 8 meters |
| Glass Breaker Detection Angle | 120º |
| Glass Breaker Detector Sensitivity | Potentiometer adjustment |
| Glass type | Floating, coated, tempered, laminated, sealed and reinforced |
| Glass thickness | From 2.4 mm to 6.4 mm |
| Installation height | From 1.8 to 2.4 meters |
| Installation | Wall |
| Sensitivilidad | Automatic |
| Immunity to animals of allegation | Available (up to 30 kg) |
| Temperature digital compensation | Available |
| Anti-opening | Available (front) |
| Alarm outlet | Usually closed |
| LED indication | Alarm: Blue Activated Pir: Green Glass Break: Red PIR + GLASS BREAK: Orange |
| Line end resistances (EOL) | Available, selectable with jumpers |
| Alarm resistances | 1k, 2k2, 4k7, 5k6, 6k8 |
| Glass Breaker Resistances | 1k, 2k2, 4k7, 5k6, 6k8 |
| Tamper resistances | 1k, 2k2, 4k7, 5k6 |
| Cabbada exits | Alarm, glass breaking and manipulation |
| Food | 9 ~ 16 VDC (maximum consumption). 36 MA) |
| Temp. operation | -10 ° C ~ +55 ° C |
| Moisture | 10 % to 90 % |
| Application scenarios | Interior |
| Dimensions | 103 (AL) X 65.5 (LG) X 48.5 (FD) MM |
