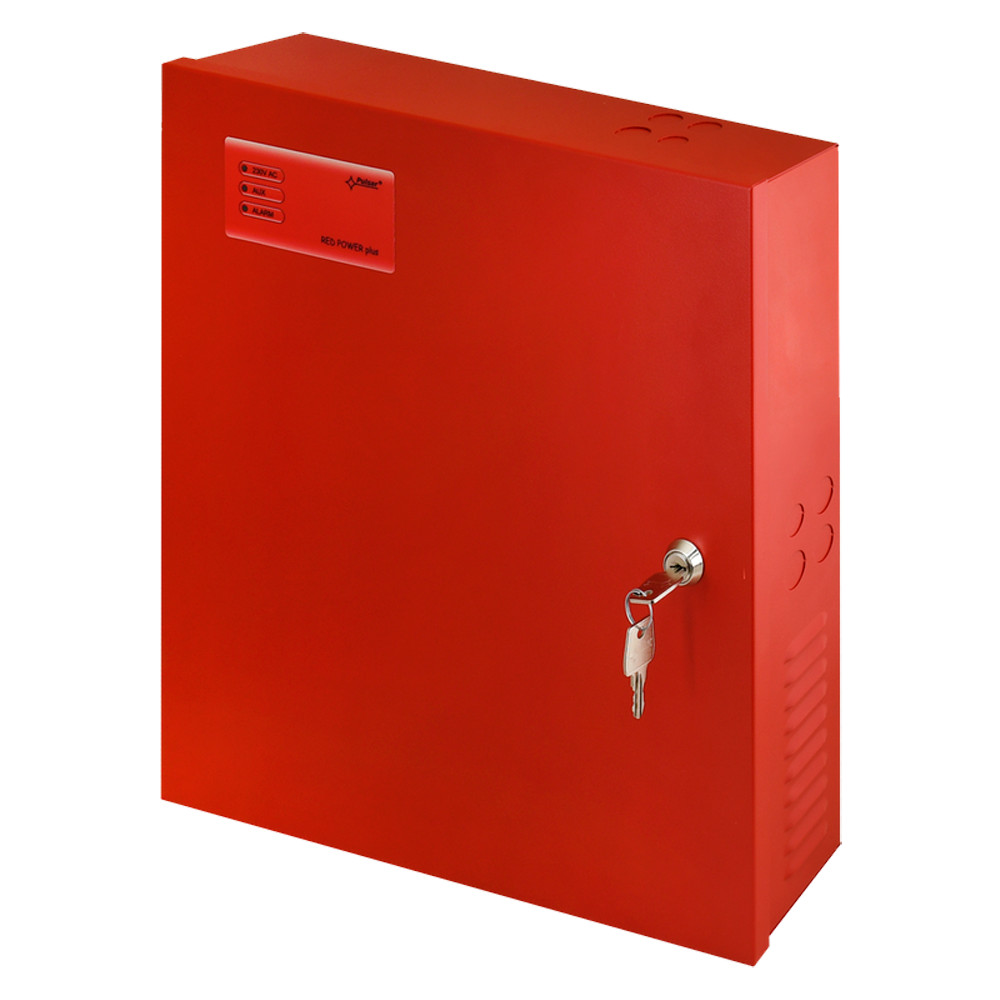

Power supply - EN54-4 Certificate - Output Current 4.2A - Maximum up to 5A for 5 minutes - Auxiliary Failure Exits - Capacity for 2 12V Batches 17Ah
€216.88
(IVA included)
€176.32
(Without IVA)
Delivery cost is not included
Description
| Power input | 230VAC |
| Output voltage | 22 ~ 27.6VDC |
| Efficiency | 87% |
| Chain load | Nominal: 42a Maximum: 5A (5 minutes) Average load: 0.8a |
| Back-up beating | Supports up to 2x12vdc / 17Ah |
| Permitted cable | Up to 2.5mm2 |
| Protection | SCP, PLO, OVP, UVP, Tamper - Opening of the box |
| Material | Plate DC01, 1mm, RAL3001 (red), metal |
| End | Locking (1xmr027, of the same code) |
| Box protection degree | IP30 |
| Dimensions | 385 x 402 x 88 [+/- 2 mm] |
