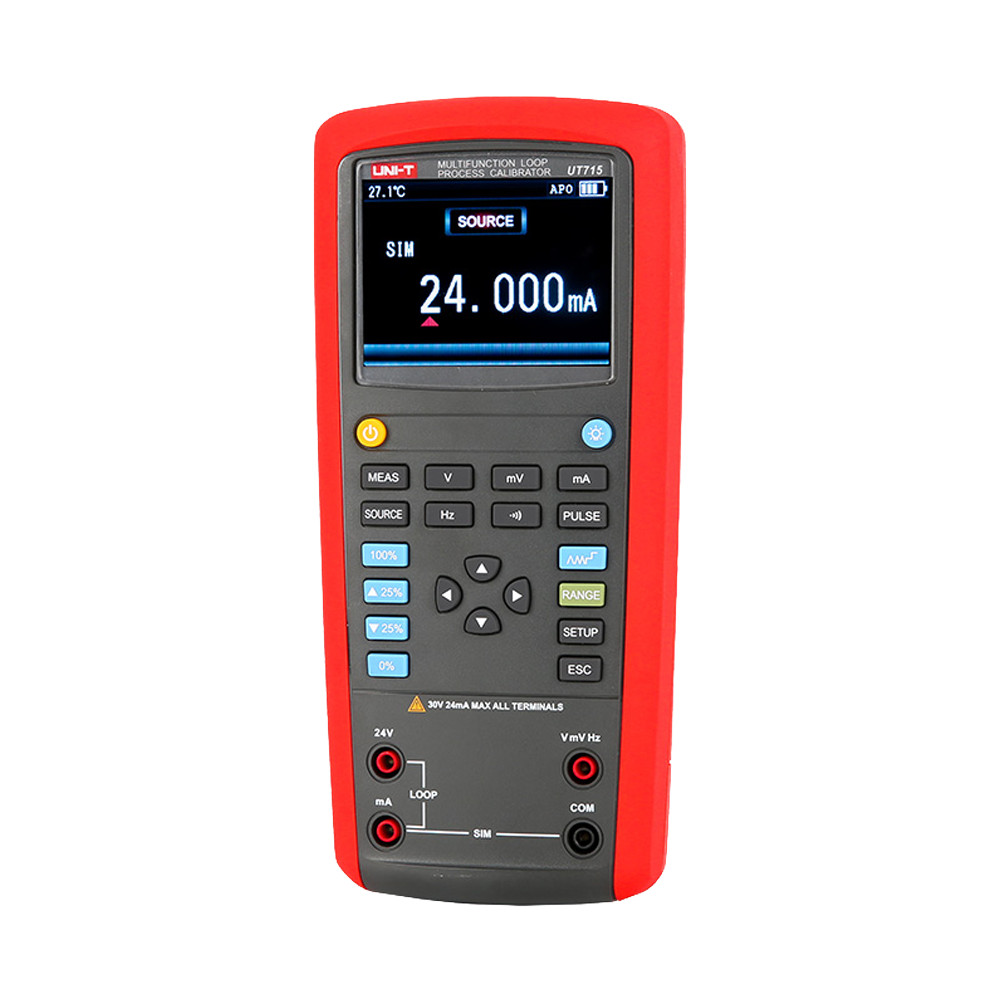

Process Calibrator Feedback/Laço - LCD Vision Up to 20000 Accounts - Measures and generates feedback tensions - measures and generates feedback flows - available USB communication - Automatic deleted
€606.29
(IVA included)
€492.92
(Without IVA)
Description
| Mark | Uni-T |
Measures | |
| DC Voltage (V) | 200mv/30V ± (0.02%+2) |
| DC current (ma) | 20MA ± (0.02%+2) |
| Feedback Chain (MA) | 20MA ± (0.02%+2) |
| Frequency (Hz) | 100Hz ± (0.01%+1) 1KHz ± (0.01%+1) 10kHz ± (0.01%+1) 100kHz ± (0.01%+1) |
| Continuity test | If you have |
Source | |
| DC Voltage (V) | 100mv ± (0.02%+10) 1000mv ± (0.02%+10) 10V ± (0.02%+10) |
| DC current (ma) | 20MA ± (0.02%+2) 20ma (yes) ± (0.02%+2) |
| Frequency (Hz) | 200Hz ± (0.01%+1) 2000Hz ± (0.01%+1) 20kHz ± (0.01%+1) |
| PULSES (Hz) | 100Hz ± 1 1kHz ± 1 10kHz ± 1 |
| Bucle7Retroalimentación (V) Bucle Output Tension | 24V ± 10% |
| Display Dimensions | 70.6mm x 34mm |
| Display accounts | Up to 20000 |
| Operating temperature | -10 ° C ~ 55 ° C |
Character | |
| Communication | If you have. USB |
| Passage Functions/Ramps | If you have |
| Contrast Adjustment | If you have |
| Automatic | If you have. Adjustable time |
| Other functions | Stores and recovers settings |
| Dimensions | 195 (AL) X 95 (LG) X 58 (FD) MM |
| Food | 6 x 1.2V rechargeable batteries (AA) |
| Weight | 650 g |
