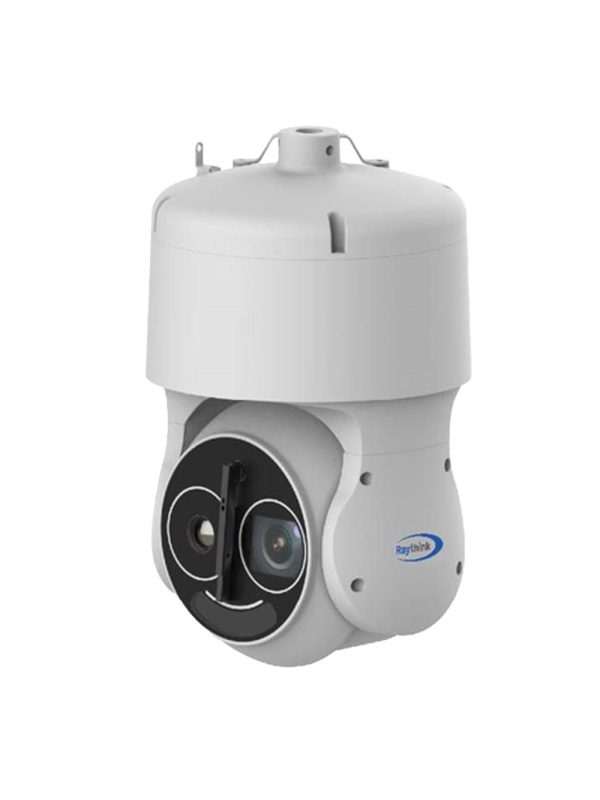

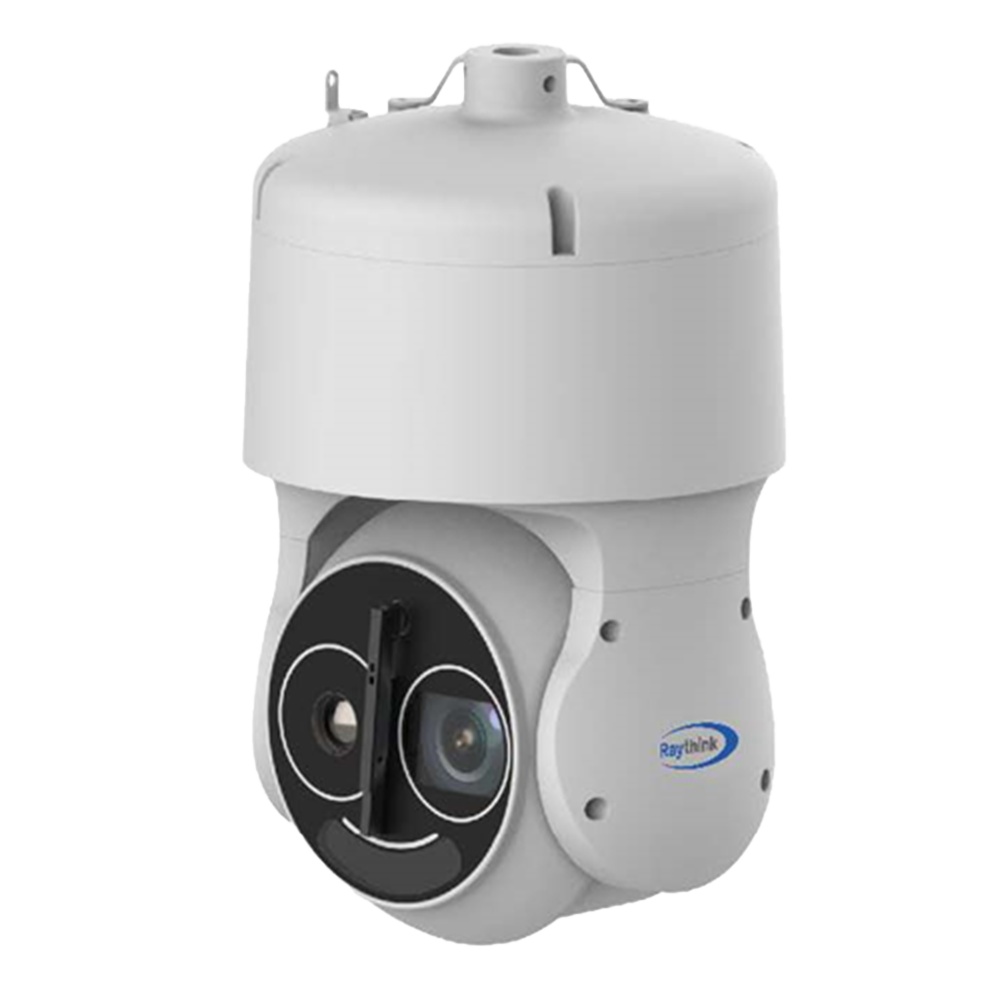

Raythink Speed Dome bi -Spectrum PD4 Series - Thermal Sensor 640x512 Vox Not Covered 12μm - Thermal Sensitivity ≤40mk (@25 ° C, F#1.0,25Hz) - Visible Sensor 1/1.8 "4MPX CMOS - Thermal Lens 50mm - Visible Lens 6.5 ~ 240m (zoom 37x)))
€5,581.41
(IVA included)
€4,537.73
(Without IVA)
Description
| Mark | Raythink |
| Gamma | PD4 |
| Thermal sensor | 640x512 Vox not cooled 12μm |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mk (@25 ° C, F#1.0.25Hz) |
| Optical sensor | 1/1.8 "CMOS 4MPX |
| Lens | 50mm (termin.) / Motorized automatic focus 6.5 ~ 240mm (opt.) 37x |
| PAN/TILT INTERVAL | Horizontal: 360 ° continuous, vertical: -27 ° ~ +90 ° |
| Manual speed | Horizontal: 0.1 ~ 200 °/s, vertical: 0.1 ~ 120 °/s |
| Windshield wiper | Auto-wipper |
| Intelligent Functions | Fire detection Intrusions Detection: Line crossing, area entry CLASSIFICATION MAN/VEHICLE BY IA |
| Temperature range | -20ºC ~ 550ºC |
| Temperature accuracy | ± 2ºC / ± 2% |
| Temperature measurement | Supports up to 4 measurement rules: entire screen, point, line, area |
| Audio | 1 input / 1 output |
| Alarm | 7 Entries / 2 Outputs |
| Internal storage | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100m baset |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Food | 24VDC / 48W |
| Temp. operation | -40ºC ~+70ºC |
| Degree of protection | IP66 Waterproof |
| Dimensions | Φ250 × 413 mm. |
| Weight | 8.0 kg. |
