Remember phase 411-rvsfo-040 400v

€44.95 (IVA included)
€36.54 (Without IVA)
Delivery cost is not included
Stock 1
Quantity Discount
The amount: 5+ 10+ 20+
Discount: 1% 2% 5%
Product code - SKU 411RVSFO040400
Order via WhatsApp
Add to Favorites

Description

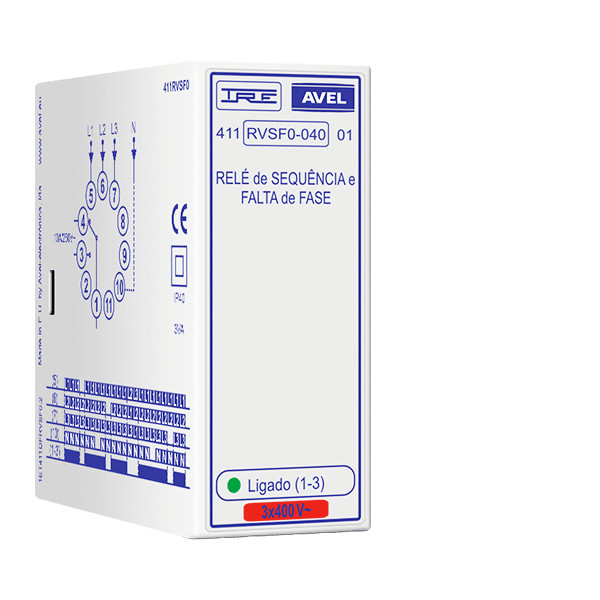

411-RVSF0


Protection in exchange or lack/phase asymmetry.

  • Plastic material box with 11 -pin circular sheet.
  • Indication of exit relay on (1-3), through green LED.
  • Front indication of the nominal relay feed voltage.

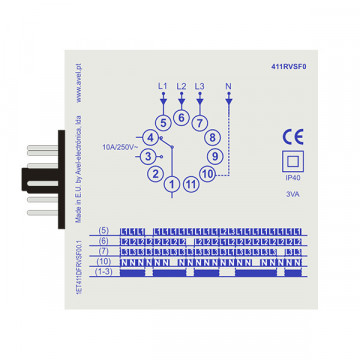

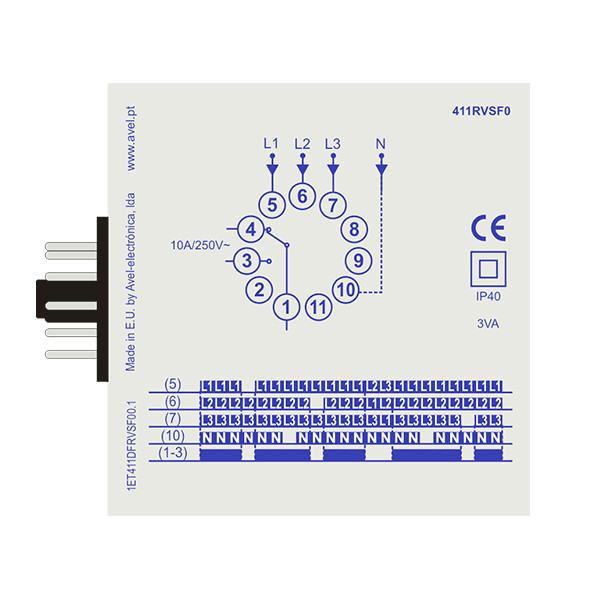

  • Side indication of the connection scheme.
  • Lateral indication of the operating diagram.


    Technical Characteristics

    • Maximum voltage drop: 15% un.
    • Power Tensions: 3x400VAC (extracted directly from the phases to be controlled).
    • Delay to Operation and Deshape: 2S (approx.).
    • Consumption: <3VA.
    • Dimensions: (L) 35mm x (A) 79mm x (P) 77mm.
    • Exit Relay:
      • Cutting Power: 2500VA (10A/250V).
      • Maximum cutting voltage: 400vac.
