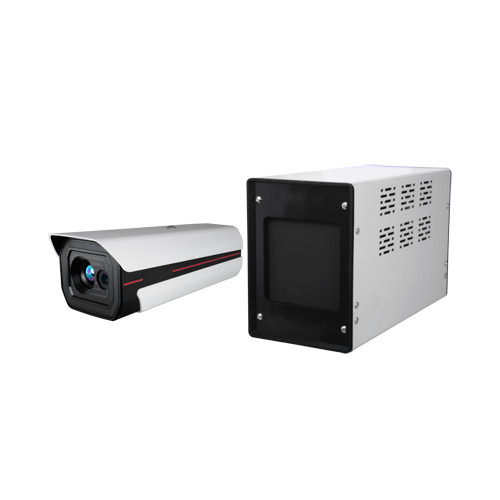

Remote Temperature Measurement Precise - Remote Measurement of Body Temperature - Thermographic Home: 384x288 Vox | 10mm Lens - Blackbody for automatic calibration and guaranteed accuracy - high accuracy ± 0.3ºC - Monitoring and Gere software
€3,189.37
(IVA included)
€2,592.99
(Without IVA)
Description
Dual IP Thermographic camera | |
| Thermal sensor | 384x288 Vanadium oxide |
| Optical sensor | 1/2.7 ”Progressive scan cmos 2 megapixel |
| Minimum lighting (for the optical part) | Color: 0.09 lux @ (f1.6, ag ON), go up to 50 m away |
| Main Stream flow | 384x288 (50fps) Term / 1920x1080 (25fps) optics |
| Extra stream flow | 384x288 (50fps) Term / 704x576 (25fps) |
| Compression | H.265+ / h.265 / h.264+ / h.264 / mjpeg |
| Lens | 10 mm (Term) |
| Vision angle | 37.5 ° × 28.6 ° (Term) |
| Thermal sensitivity | <40mk (0.05 º C) |
| Thermal measurement rate | 20 ~ 50ºC / high accuracy ± (only 0.3ºC using BlackBody) |
| Spectral strip | 8 ~ 14μm |
| Pixel size | 17μm |
| Intelligent Functions | Body temperature measurement |
| Measurement Characteristics | Up to 30 facial detection in the same scene / between 2 ~ 6 m. from a distance to detection (optimal point 3 ~ 4 m.) |
| Audio | Does not have |
| Alarm | 1 relay (NA/NC) |
| Internal storage | Does not have |
| Network interface | Ethernet 10/100 Baset |
| Remote access | Web, CMS and NVR interface |
| Interoperability | Onvif |
| Recommended installation | 2 m high |
| Food | 12VDC, 4W Max. |
| Temp. operation | 0º C ~ +30º C |
| Degree of protection | IP66 Waterproof |
| Dimensions | 293.9 mm (FO) x 120.7 (AN) X 119 (AL) MM |
| Weight | 2 kg |
Blackbody | |
| Temperature range | 30ºC ~ 50ºC adjustable |
| Temperature stability | ± (0.1-0.2) ºC/ 30 min |
| Recommended installation | 2 m max. from the ceiling (always inside the chamber's FOV) |
| Food | 220 VAC, 50 Hz (max. 40W, nominal 25w) |
| Dimensions | 240 (background) x 150 (AL) x 160 (width) |
