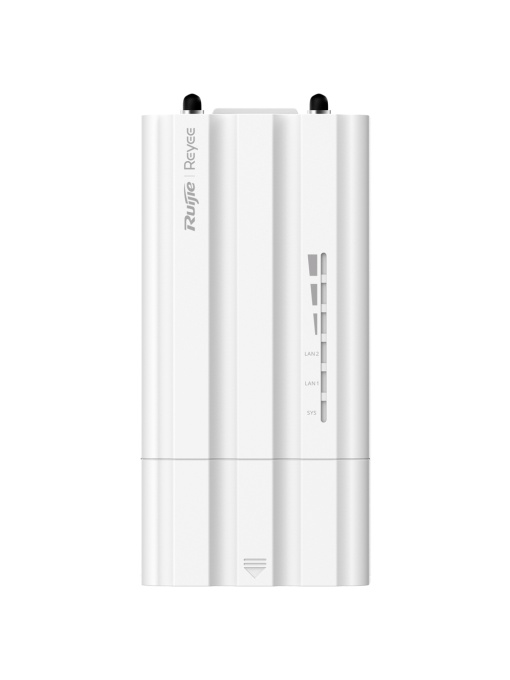

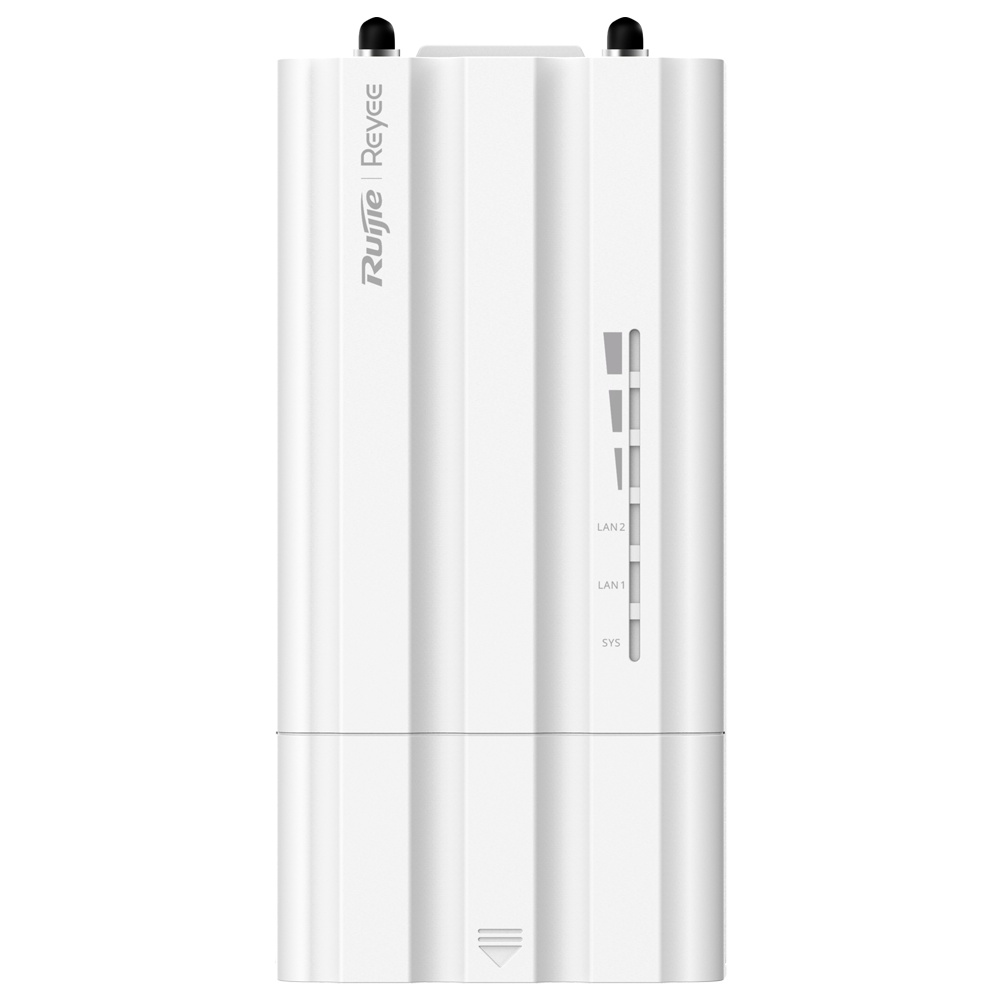

Reyee - Radio Base Station - Frequency 5.15 GHz 5.85 GHz - Owner Protocol Based on TDMA - IP55, Apt for Outdoor - 2x SMA connectors for external antenna connection
€266.70
(IVA included)
€216.83
(Without IVA)
Delivery cost is not included
Description
| Mark | Reyee |
| Standard Wireless | Owner |
| Mode of operation | Point to Point / Point - Multipoint (up to 32 CPE) |
| Porta RJ45 | 2 x 10/100/1000 Mbps |
| Frequencies | 5.15 GHz - 5.85 GHz |
| Distance | Up to 15 km |
| Channel width | 20/40/80MHZ |
| Transmission range | 0 to +26 dbm |
| Unintegrated antenna | SMA connectors |
| Compatible antennas references | RG-Ant13-360, RG-Ant16s-120, RG-AN20S-90 |
| Tdma | Fixed Fixed Mode / Mode |
| Management | Configuration via web interface, one -click setting, bridge heat map, bridge alignment tool, spectrum swept and connection optimization |
| Additional features | SSID mask, spectrum analysis, alignment tools, One-Touch Paining, WMM, Storm Control, Packet Transmit Vlan, DHCP server, Ping/Traceroute/DNS Diagnoses, Arq, Remote Reinforcement |
| Food | 24 VDC POE NO STANDARD / 12VDC |
| Temperature operation | -40 ° C ~ 80 ° C (when using a current adapter, the maximum operating temperature of the device and current adapter is 60º max) |
| Electrostatic protection | ± 24 kV Contact/Air |
| Protection against overvoltages | 6 kV |
| IP protection degree | IP55 |
| Electric consumption | <12 W |
| Dimensions | 200 x 98.5 x 29mm |
| Weight | 0.68 kg |
