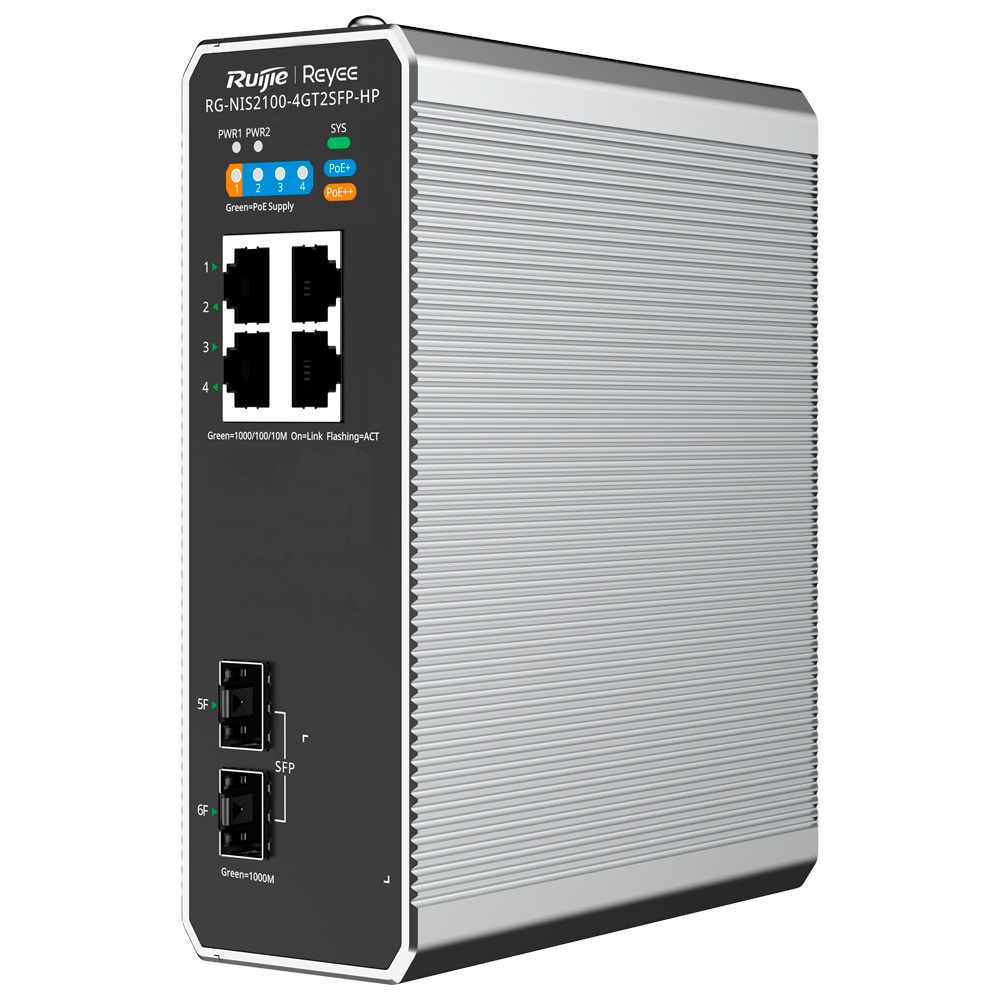

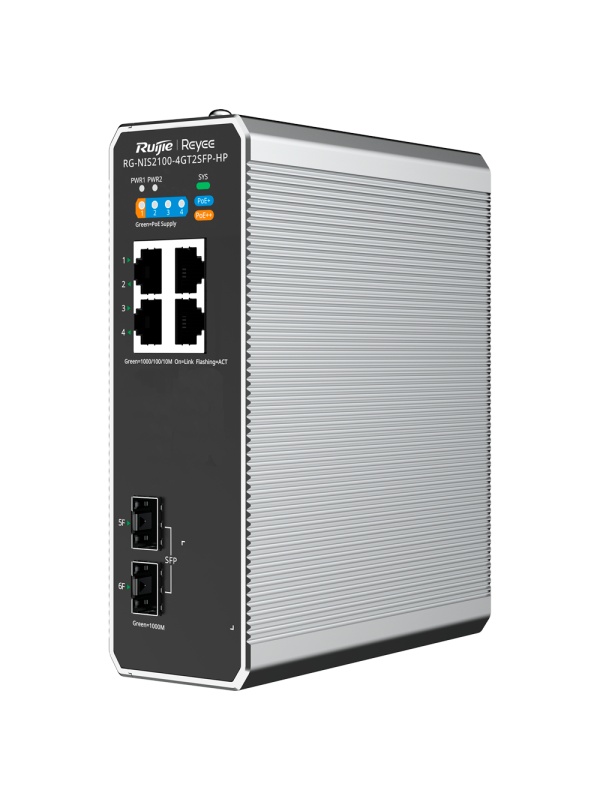

Reyee Switch Industrial Poe Cloud Cover 2 - 4 Doors RJ45 Gigabit + 2 Doors SFP Gigabit - 4 Ports Poe + 30W + 1 Hi -POE 90W ports - Extended POE (Ports 3 ~ 4)/Ports Isolation - VLAN/ERPs/LOOPS/WATCHDOG/DHCP SNOOO
€279.30
(IVA included)
€227.07
(Without IVA)
Delivery cost is not included
Description
| Interface | 4 ports RJ45 10/100/1000 Mbps + 2 SFP ports |
| Speed ports | 4 x 10/100/1000 Mbps - 2 x Gigabit SFP |
| Pope | Port 1 802.3bt Doors 1 ~ 4 802.3AF/AT |
| Electric power supply | Up to 180w of Poe in all doors. Up to 90 Porto W 1. Up to 30 Port W (1 ~ 4). If the device is fed from 46vdc to 57vdc, it can be fed to IEEE 802.3AF. If the device is fed from 50vdc to 57vdc, it can be fed to IEEE 802.3AT. If the device is fed 52VDC to 57VDC, it can be fed to IEEE 802.3bt (Type2) |
| Poe Characteristics | According to IEEE 802.3AT POE+ / IEEE 802.3AF POE / IEEE 802.3BT (TYPE2) POE ++ |
| Vlan | Until 4094 Door -based VLAN |
| Redundancy control | ERPs (only available in its SFP ports) |
| Network Protocols and Technologies | DHCP Snooing Jumbo Frame 10000 Ties prevention Flow control Storm control (unicast, diffusion, multicast) Span |
| Management Protocols | Web/Cloud/App |
| Installation | Din and/or Wall |
| Food | Power supply not included 46-57VDC / 4.2A Reference is recommended: -RG-NIS-PA120-54 (will offer a lower total poet power) -RG-NIS-PA240-54 |
| Protection | 6kV against voltage peaks 4KV/2KV Input Power Protection IP40 Against Poeiras EMC Level 4. |
| Operating temperature | -40ºC ~ 65ºC in a closed space -40ºC ~ 75ºC with air flow |
| Recommended industrial SFP modules | RG-NIS-GER-SFP-10KM-SM1310 RG-NIS-GER-SFP-20KM-SM1310-BIDI RG-NIS-GER-SFP-20KM-SM1550-BIDI RG-NIS-GER-SFP-550M-MM850 |
| Dimensions | 500 x 430 x 195mm |
| Weight | 1.08 kg (with packaging) |
