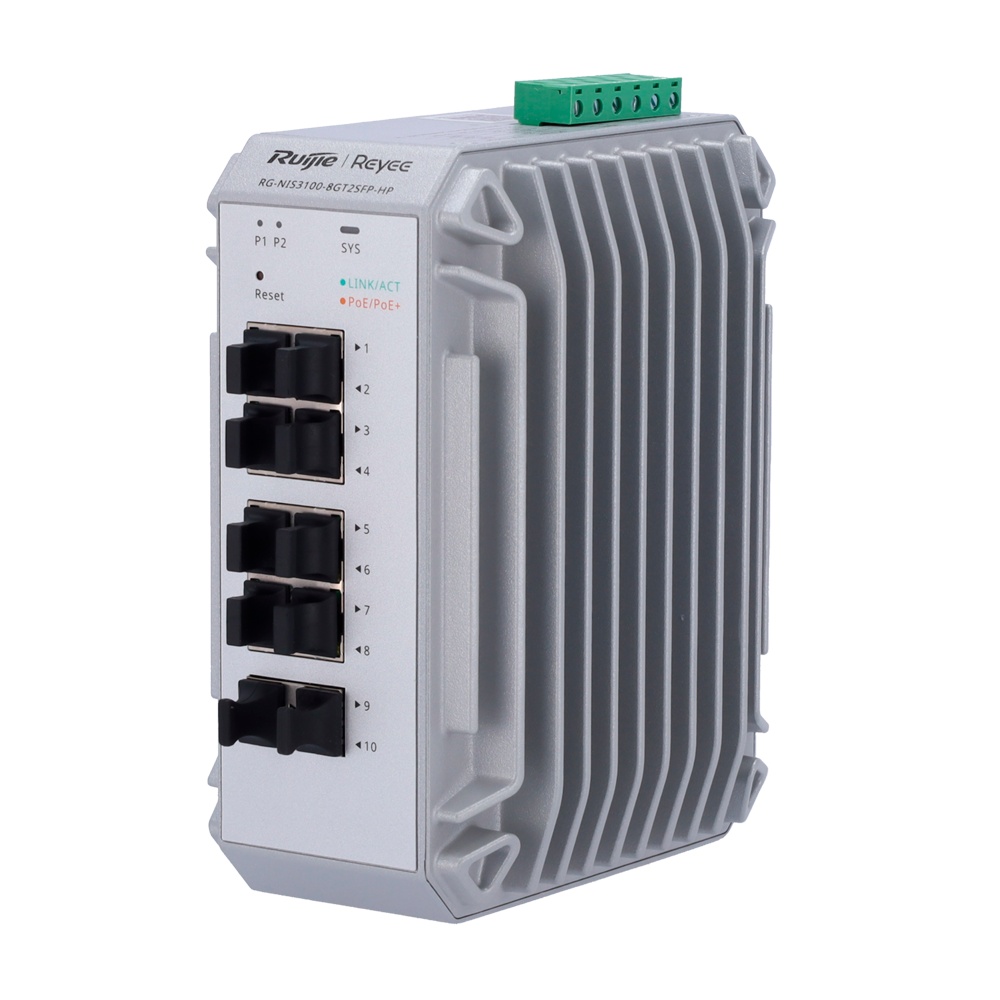

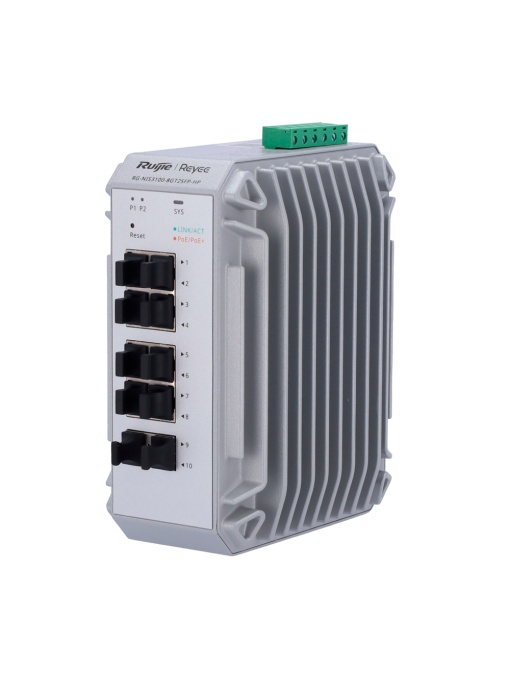

Reyee Switch Industrial Poe Cloud Cover 2 - 8 gigabit ports Poe + + 2 gigabit sfp doors - 30W by door 802.3AF/AT/Maximum 240W - Static Lag/DHCP Snoop/IGMP Snoop/Port Mirror - VLAN/LOOP/STP/ACL/Watchdog - Carril Din
€906.15
(IVA included)
€736.71
(Without IVA)
Description
| Interface | 8 Ports RJ45 10/100/1000 Mbps + 2 SFP ports |
| Speed ports | 8 x 10/100/1000 Mbps - 2 x Gigabit SFP |
| Pope | Doors 1 ~ 8 802.3AF/AT |
| Electric power supply | Up to 30 W by Porto If the device is fed 48vdc, the total power is 240W If the device is fed 24vdc, the total power is 120W If the device is fed 12vdc, the total power is 60W |
| Poe Characteristics | According to Norma IEEE 802.3AT POE+ / IEEE 802.3AF POE |
| Vlan | Until 4094 VOICE VLAN |
| Redundancy protocols | Spanning Tree (STP, RTSP) ERPs (only available in its SFP ports) |
| Network Protocols and Technologies | LDP/LLDP-MED DHCP Snooing IGMP Snooing v1/v2/v3 ENERGY EFFICIENT Ethernet ACL JUMBO FRAME 9216 Ties prevention SNMP V1/V2C/V3 |
| Management Protocols | Web/Cloud/App |
| Installation | Din and/or Wall |
| Food | Power supply not included 12-56VDC / 7A Reference is recommended: -RG-NIS-PA240-48 -RG-NIS-PA120-48 (will offer a lower total poet power) |
| Protection | 8kV against tension peaks 6kV against lightning IP40 Against Poeiras |
| Operating temperature | -40ºC ~ 65ºC in a closed space -40ºC ~ 80ºC when an exhaust with a 400 LFM flow is installed in a location |
| Recommended industrial SFP modules | RG-NIS-GER-SFP-10KM-SM1310 RG-NIS-GER-SFP-20KM-SM1310-BIDI RG-NIS-GER-SFP-20KM-SM1550-BIDI RG-NIS-GER-SFP-550M-MM850 |
| Dimensions | 85 x 132 x 165mm |
| Weight | 1.91 kg (with packaging) |
