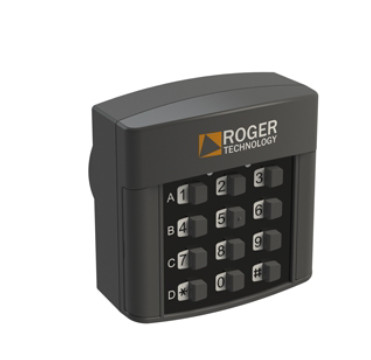

ROGER Keyboard Embed with h85/tds/i wires

Description

H85/TDS/I selector for 12 digit numerical keyboard, 4 channels, built -in.

Technical Specifications Product--
Line power (decoder) 24 V AC-DC; 12 V DC: H85/Dec--
Consumption 20ma--
Operating temperature -10 ° C + 55 ° C--
IP54-
Number of User Codes Armanezado 500--
Maximum number of digits to the user code 6--
Minimum number of digits for the user code 3--
Maximo keyboard number connectable 4--
Number of outputs 4 of command; 1 Alarm--
Type of qualification outputs dead man (continue until you release the key)-
Relay output type, pure contact--
Maximum switching power (unlotted lamps) 60VA/24W 1a--
Relay Relay Relay 100ms---
Maximo Cable Length 100m Keyboard Interface (cable with two section conductors 0.5mmq)-
Retroilimination of the 6 LED BLANCOS keyboard, from the intensate niveles--
Type of built-in installation---

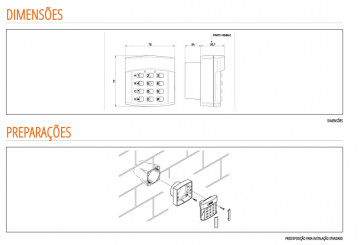

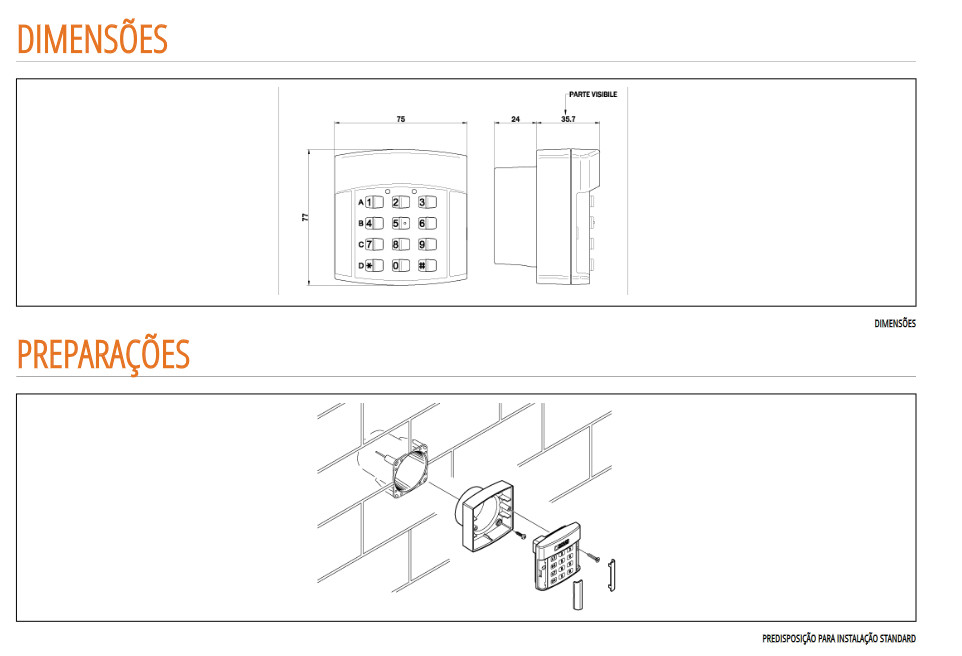

Dimensions Max Product MM (L x W x h) 75 x 77 x 60---
WEIGHT OF PACKED PRODUCT (KG) 0.2
