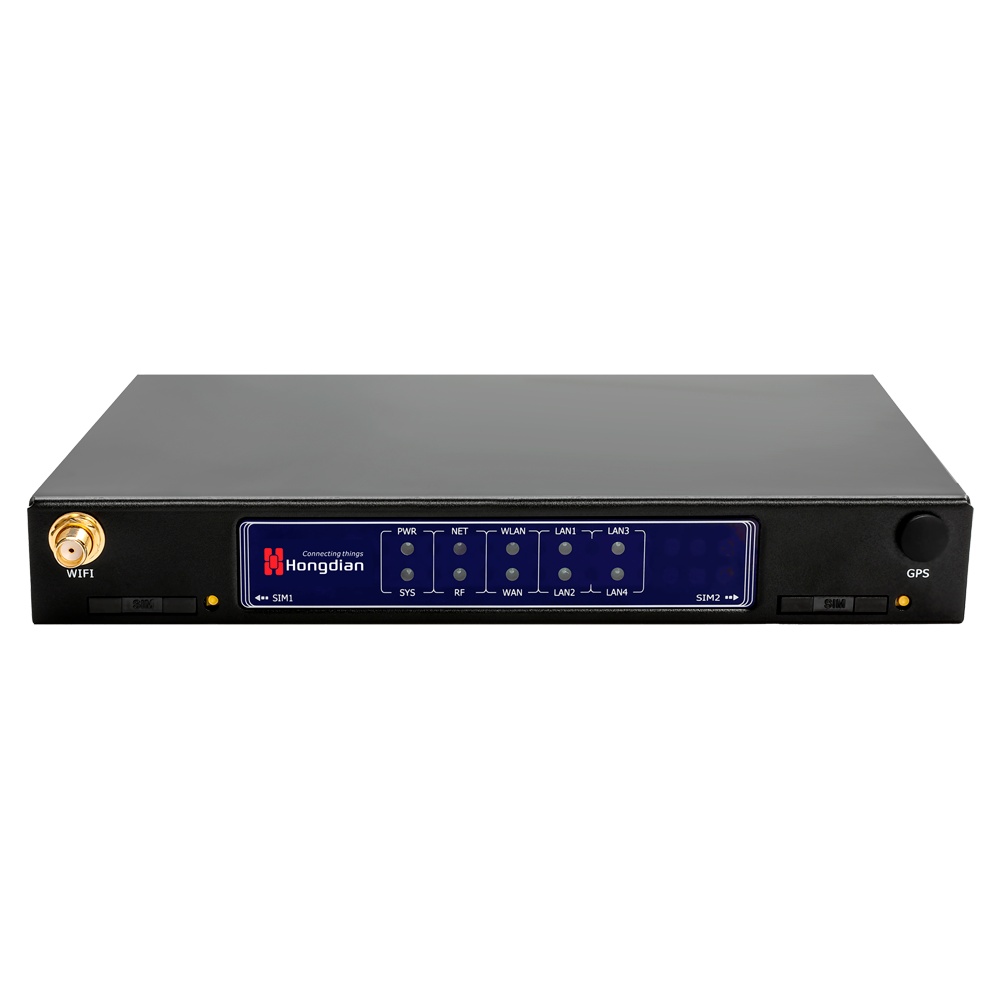

Router Hongdian Industrial 4G - 4g cat 4 - GPS - 5 ports Ethernet RJ45 Fast Ethernet - Dual SIM Dual Modem - Doors RS232/RS485 - Wi -Fi 802.11b/g/n 2.4GHZ
€184.99
(IVA included)
€150.40
(Without IVA)
Delivery cost is not included
Description
| Mark | Hongdian |
| Device | Router 4g Industrial |
| YES | 2 SIM 4G / 3G 2FF (not included) 1 of the adapters is only for use GPS |
| Positioning | Supported Technologies: GPS, Glonass, Beidou, Galileo Protocol: NMEA 0183 Coordinates: Web UI, RMS |
| Ethernet | 5 Ethernet ports RJ45 10/00/1000mbps (1 WAN + 4 LAN) |
| Standard doors | Transparent, modbus rti Definition of doors: RX, TX, GND (RS-232), A+, B-, GND (RS-485) 6-Pin connector 3.5 MM female socket RS-232 transmission rate (300-115200bps), RS-485 (300-115200bps) |
| Wi-fi | Wi-Fi 4 802.11 2.4Ghz WP, WPA, WPA2 Security Encryptation 64/128 AES, TKIP |
| Frequencies LTE | 4g (LTE-FDD): B1/B3/B5/B7/B8/B20 4g (LTE-TDD): B38/B40/B41 3g: B1/B5/B8 2g: B3/B8 |
| Antenna connectors | WiFi, LTE and GPS (antennas included) |
| CPU | Mips 24kc 580 mhz |
| Ram | 128MB DDR3 |
| Flash | 16MB |
| Network protocols | PPP, PPPOE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, Nat, http, https, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, Qos, Static Routing, Policy Routing, RIP, OSPF, BGP, Failover. |
| VPN protocols | PPTP/L2TP/GRE/IPSEC/OPENVPN/DMVPN/WIREGUARD |
| Monitoring and Management | Http, telnet, ssh, sms, snmp v1/v2/v3, snmp trap |
| Security | Nat, Pat, DMZ, Port Forword IP/Domain/Mac Filter, Access Control List, DDOS Prevention, Anti Port Scanning |
| Food | CC connector 5 ~ 36V (12V power supply included) |
| Electricity consumption | Inactive: 200ma@12vdc Data connection: 550ma@12vdc |
| Material | Metal |
| Degree of protection | IP30 |
| Temp. operation | -30º C ~ +70º C |
| Moisture | ≤ 95%(in the condenser) |
| Installation | Wall or table |
| Dimensions | 25 (AL) X 176 (AN) × 105 (FO) MM |
| Weight | 540 g |
| Region | Europe, Middle East, Africa, Korea, Thailand, India, Malaysia, India, Malaysia |
