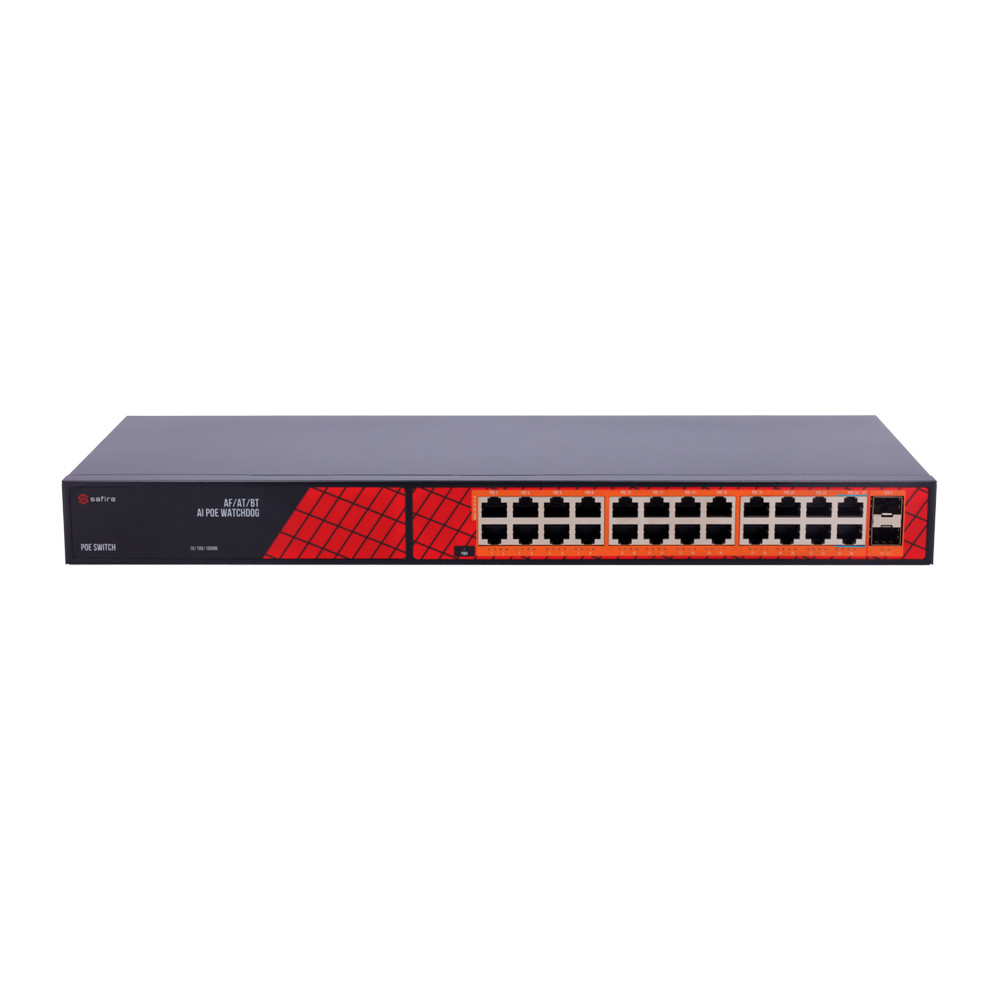

Description
| Interface | 24 POE + 2 UPLINK SFP |
| Port speed RJ45 | 24x 10/100/1000mbps + 2x 10/100/1000mbps |
| Poe Characteristics | Up to 300W in total for all doors Doors 1 ~ 22 Poe+ Up to 30W 802.3AF/AT Port 23 ~ 24 hi-poe up to 60W 802.3AF/AT/BT |
| Transmission distance | 130 meters |
| Bandwidth | 52gbps |
| Mac table | 8k |
| Latency | 10 to 100Mbps <16μs (using 64 bytes of the package size) |
| Ai Poe | POE WATCHDOG 1 ~ 24 - Automatic restoration of the power door of a Poe door when a possible failure is detected. |
| Food | Rear plug 90 ~ 240V |
| Protection | 6kV against energy pits 8KV Protection ESD |
| Operating temperature | -30 ° C - 60 ° C |
| Dimensions | 18 (FO) X 45 (AL) X 430 (AN) MM |
| Weight | 2.65kg |
